Product Details:
|
| Type: | Diamond Blades | Application: | Prestressed Concrete, Precast Concrete |
|---|---|---|---|
| RPM: | 1500~2000 RPM | Cutting Type: | Wet Cutting |
| Color: | Red, Clear Or As Your Request | Inner Hole: | 50mm, 60mm Or Others |
| High Light: | concrete diamond blade,circular saw concrete blade |
||

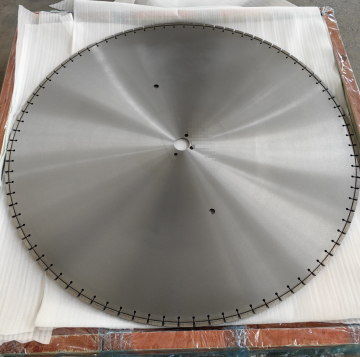

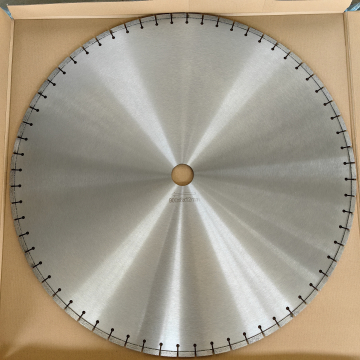

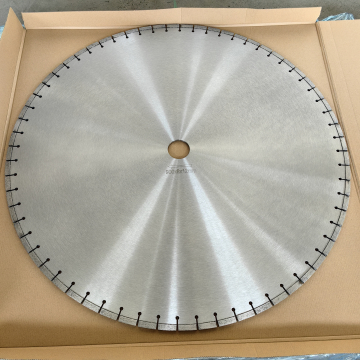

710mm Laser Welded Blade For Cutting Prestressed Concrete and Prestressed Beam
T-beam, used in construction, is a load-bearing structure of reinforced concrete, with a t-shaped cross section. The top of the t-shaped cross section serves as a flange or compression member in resisting compressive stresses. The web (vertical section) of the beam below the compression flange serves to resist shear stress and to provide greater separation for the coupled forces of bending.
Our blade is cutting the prestressed concrete beam, column ,lintel and so on.
Feature
1. 100% laser welded technology.
2. Wet Cutting prestressed concrete: 350kg/cm².
3. Fits to Precast Prestressed Concrete Machine—Bridge Crane, Prestressed concrete cutting machine.
4. Well exported to South africa, Bahrain, Vietnam, Egypt, UK, Mexico, Thailand market.
Spec.
Diameter: 710mm
Segment thickness: 6.4mm
Segment height:10mm, 15mm
Segment lenth: 40mm
Teeth number: 48
Inner hole: 50mm, 60mm or as your request
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 28" | 710 | 40 | 6.4 | 12 | 48 |
| 28" | 710 | 40 | 6.4 | 15 | 48 |
Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled worers and technical engineers.
