Product Details:
|
| Diameter: | 18inch | Application: | Concrete And Asphalt |
|---|---|---|---|
| Segment Size: | 40x6/8/10/12/14x10mmx32T | Inner Hole: | 25.4mm |
| Pin Hole: | 12-28.575mm | ||
| High Light: | concrete diamond blade,circular saw concrete blade |
||

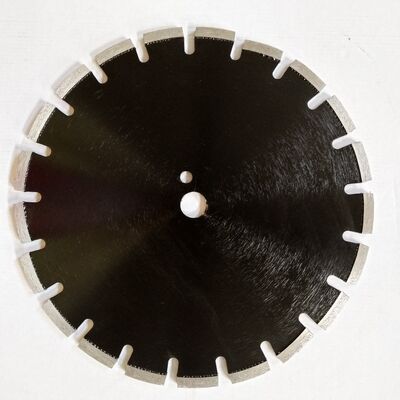

450mm Laser Loop Diamond Concrete Saw Blade for Airport Traffic Road Cutting
1. Description
This loop blade is an ideal tools for joint widening, looping and cleanout on concrete / asphalt road. We can do wider segment as your request, so you do not need to use multi blades for your cutting job. Both the steel core and diamond segments is high quality, laser welding technology and our QC makes safe cutting for concrete cutters.
2. Features
1. Used for various grooving saws.

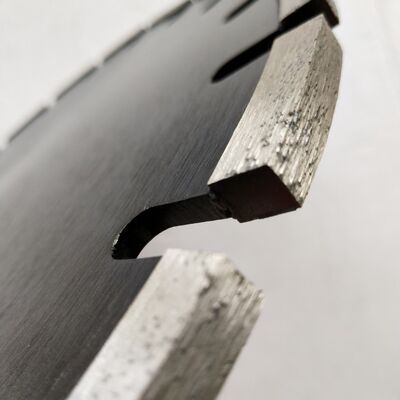

2. Designed to outlast - with large diamond segments and special bond
3.laser welded or silver brazed, accoridng to the segment and steel disc thickness
4. Thick steel core and laser welding technology for maximum reliability and safety
5. Cutting expansion joints in fresh concrete or for loop-line traffic light detector systems.
6. Laser welded type suit for dry and wet cutting, silver welded type suit for wet cutting.

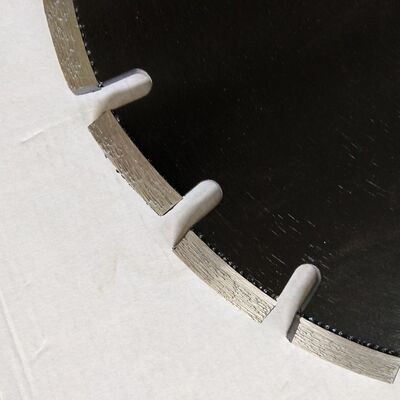

7. Key Slot
3. Specification
1. Diameter: 450mm
2. Segment length: 40mm
3. Segment Width:6-14mm or as your request.
4. Segment height:10mm, 12mm, 15mm.
5. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
6. Key slot loop cutting saw blade
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 18" | 450 | 40 | 6/8/10/12/14 | 10/12/15 | 32 |
Other size of the diamond loop saw blade
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 10" | 250 | 37 | 6/8/10/12/14 | 8/10/12/15 | 18 |
| 11" | 280 | 40 | 6/8/10/12/14 | 10/12/15 | 19 |
| 12" | 300 | 40 | 6/8/10/12/14 | 10/12/15 | 20 |
| 14" | 350 | 40 | 6/8/10/12/14 | 10/12/15 | 24 |
| 16" | 400 | 40 | 6/8/10/12/14 | 10/12/15 | 28 |
| 18" | 450 | 40 | 6/8/10/12/14 | 10/12/15 | 32 |
| 24" | 600 | 40 | 6/8/10/12/14 | 10/12/15 | 42 |
4. Why buy diamond blade from us?
1. Our concrete diamond blade have been well confirmed by world market for 18 years.
2. Compared with most suppliers, we could ensure that our cutting efficiency is increased at least 20% at the similar price.
3. 24 hours response.
4. Professional technical support and solution.
5. Direct communication with engineers.
6. Best after-sale service.
