Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB

Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB
Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB
Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB

Large Image :  Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 300mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 15-35days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month

Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB

Description
Outer Diameter: 300mm Center Hole: 25.4mm, 50mm As Your Request
Segment Thickness: 3mm Segment Height: 10/12/15mm
Other Size: 4'/5"/6"/7"/8"/9"/10"/14"/16"/18"/30"
High Light:

concrete circular saw blade

,

circular saw concrete blade

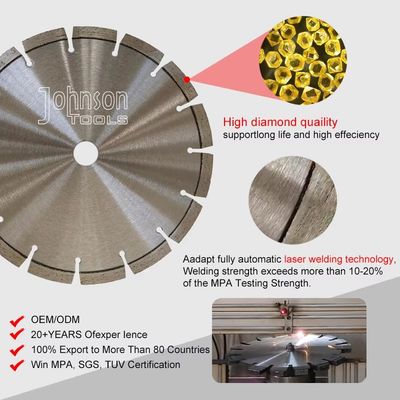

1. Description of 300mm Laser Diamond Turbo Saw Blade for Cutting Hard Cured Concrete



12" Laser welded Diamond Turbo Blade designed for low and high horse power walk behind saws and high speed hand held saws.

Wet or dry cutting for no reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.

Undercut protection to prevent segment loss during cutting. Maximum cutting performance and longer life via tough wear-resistant segments



Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB 0



2. Specification information of 300mm Laser Diamond Turbo Saw Blade for Cutting Hard Cured Concrete



Diameter:300mm
Segment thickness:3.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
12" 300 40 3.0 10 20
12" 300 40 3.0 12 20
12" 300 40 3.0 15 20


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 7/10/12 16
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46



3. Packing and Shipping



Laser Diamond Turbo Hard Cured Concrete Circular Saw Blade SGS GB 1



Each 12" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
