Product Details:
|
| Outer Diameter: | 250mm | Center Hole: | 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm |
|---|---|---|---|
| Segment Thickness: | 2.6mm | Segment Height: | 7/10/12mm |
| High Light: | concrete diamond blade,concrete circular saw blade |
||

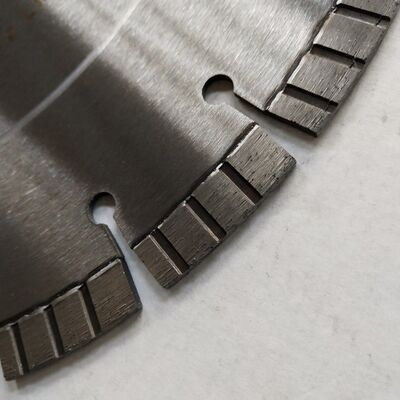

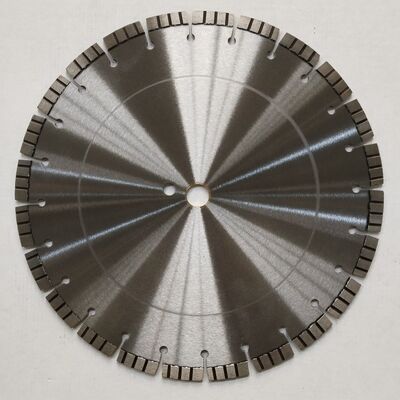

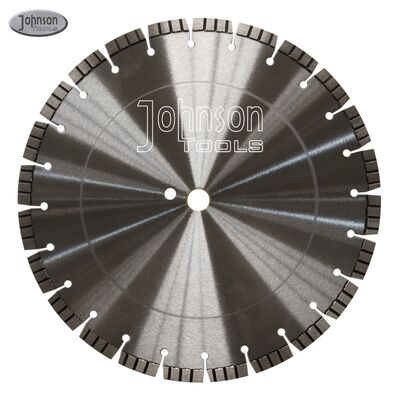

1. Description of 250mm Diamond Turbo Saw Blades for Fast Cutting Reinforced Concrete
10" Laser welded Diamond Blade designed for low and high horse power walk behind saws and high speed hand held saws.
Wet or dry cutting for no reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.
Undercut protection to prevent segment loss during cutting. Maximum cutting performance and longer life via tough wear-resistant segments.
2. Specification information of 250mm Diamond Turbo Saw Blades for Fast Cutting Reinforced Concrete
Diameter:250mm
Segment thickness:2.6mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |

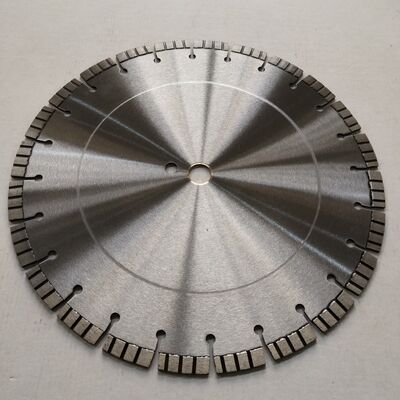

250mm Laser turo saw blade, Inner hole: 25.4mm, segment size: 37x2.6x10x18nos, key slot
3.Feature of 250mm Diamond Turbo Saw Blades for Fast Cutting Reinforced Concrete
1) High precision and speed for cutting reinforced concrete
2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages
4. Packing and Shipping
Each laser saw blade is packed in white box, then 25pcs put in an export standard carton, gross weight per carton is limited within 28kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
