Product Details:
|
| Certification: | EPA | Product Name: | General Gurpose Diamond Saw Blade |
|---|---|---|---|
| Application: | Masonry, Stone, Granite, Concrete, Brick, Block | Material: | 30CrMo+Diamnod |
| Segment Thickness: | 2.2mm | Notch: | Key Slot, Wide U, Narrow U |
| Color: | As Requested |

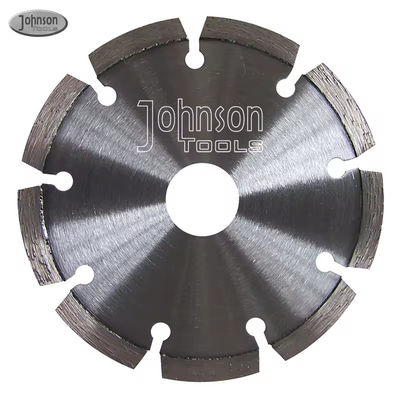

105-600 mm hoja de sierra de diamante lame de scie diamant diamond cutting disc saw blade for granite concrete marble masonry
1:Description:
General purpose diamond blades are ideal for contractors requiring the versatility to cut an array of materials, such as masonry, concrete, brick, block, slate, or quarry stones. These universal blades are compatible with various saw types, including masonry saws, brick saws, concrete saws, cut-off saws, walk-behind saws, gas-powered saws, and circular saws. A notable advantage of employing such a blade is its adaptability, eliminating the need for frequent blade changes between tasks. This enhanced efficiency and flexibility translate to reduced operational expenses.

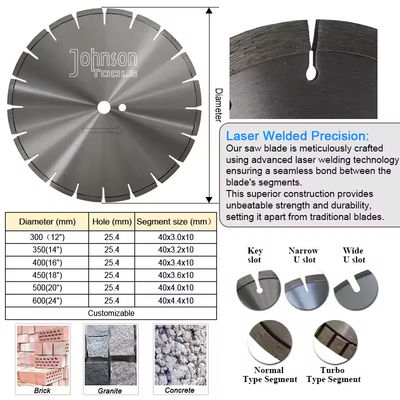

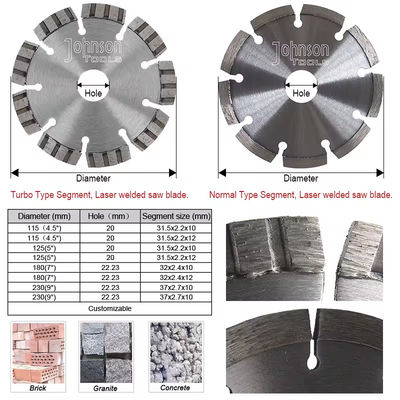

2.Specification:
| Inch |
Diameter
(mm)
|
Teeth length
(mm)
|
Teeth thickness
(mm)
|
Teeth height
(mm)
|
Teeth number
(nos)
|
| 4" | 105 | 31.5 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31.5 | 2.2 | 7/10/12 | 8 |
| 5" | 125 | 31.5 | 2.2 | 7/10/12 | 9 |
| 6" | 150 | 32 | 2.2 | 7/10/12 | 9 |
| 7" | 180 | 32 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 37 | 2.4 | 7/10/12 | 14 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 44 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 50 |
| 30" | 750 | 40 | 5.0 | 10/12/15 | 54 |
| 32" | 800 | 40 | 6.5 | 10/12/15 | 46 |
3.Application:
