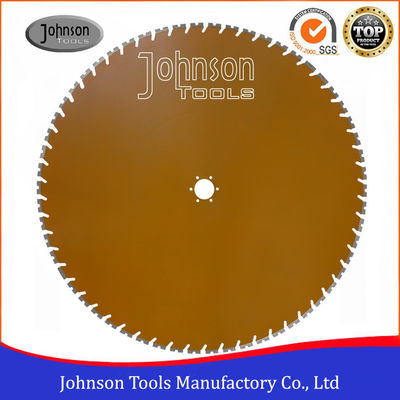

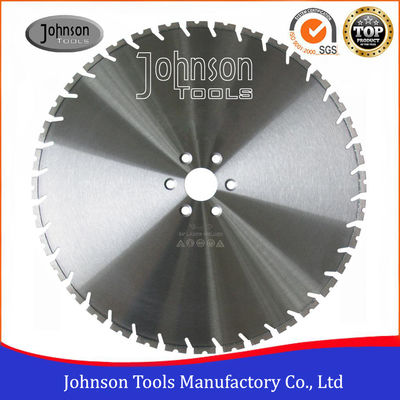

Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting

Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting
Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting

Large Image :  Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 24"-64"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: White box, Plywood
Delivery Time: Around 30-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per year

Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting

Description
Type: Wall Saw Blade Slot Type: Slant U Slot
Application: Concrete Structure Demolition, Cutting Segment Type: Single U Type
Inner Hole: 25.4mm, 60mm Or As Your Request Power: Different Formula For 3HP-85HP Cutting Machine
HS Code: 82023910
High Light:

concrete wall cutting saw

,

diamond concrete cutting blades



24"-64" Laser Welded Diamond Saw Blade , Concrete Cutting Blade for Wall Saw



Feature

1. 100% laser welding technology provide safe cutting.

2. Well exported to American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia,         Netherland, UK, Sweden, UAE, India, Saudi Arabia etc.

3. Fit to 3HP to 85HP cutting machine, if you need higher power, we could do as your request.

4. Dry or wet cutting.

5. Slant slot.

6. Provide different flush cut bolt holes.



Specification

1. Diameter:600-1600mm

2. Segment thickness:4.8/5mm

3. Segment height:10/12mm

4. Inner hole size:25.4mm, 50mm, 60mm, 80mm or as your request.



Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)

24" 600 40 4.8/5 10/12 36
28" 700 40 4.8/5 10/12 40
32" 800 40 4.8/5 10/12 46
36" 900 40 4.8/5 10/12 52
40" 1000 40 4.8/5 10/12 58
48” 1200 40 4.8/5 10/12 68
56” 1400 40 4.8/5 10/12 86
60” 1500 40 4.8/5 10/12 90
64” 1600 40 4.8/5 10/12 92







                Diamond Concrete Blade , Diamond Cutting Blades For Dry / Wet Cutting 0
