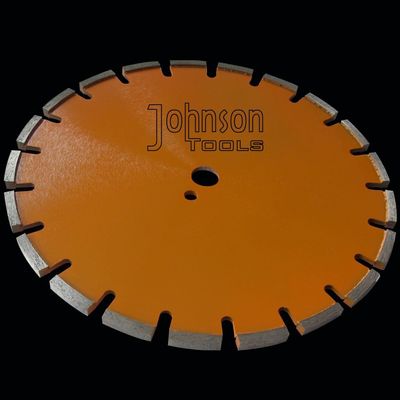

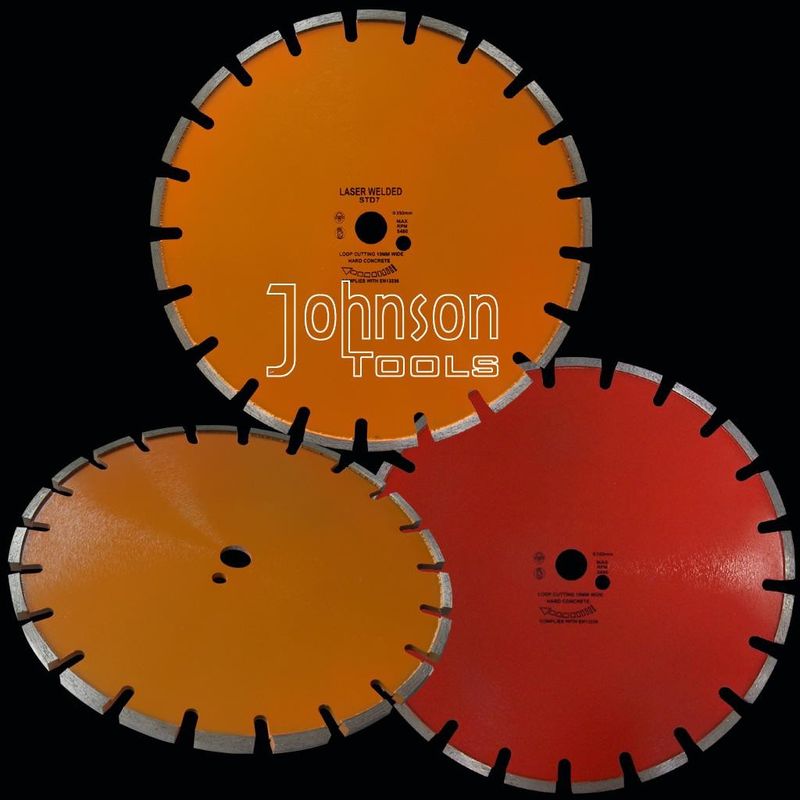

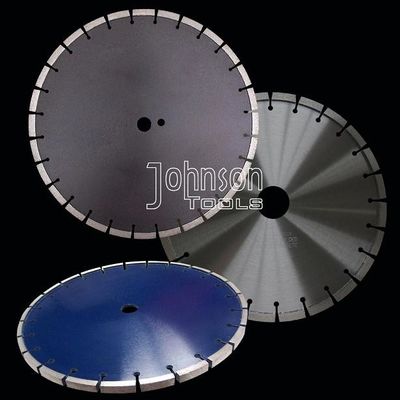

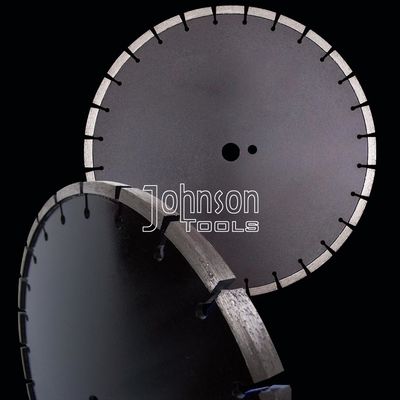

350mm 400mm 450mm loop saw blade

350mm 400mm 450mm loop saw blade
350mm 400mm 450mm loop saw blade 350mm 400mm 450mm loop saw blade 350mm 400mm 450mm loop saw blade 350mm 400mm 450mm loop saw blade 350mm 400mm 450mm loop saw blade

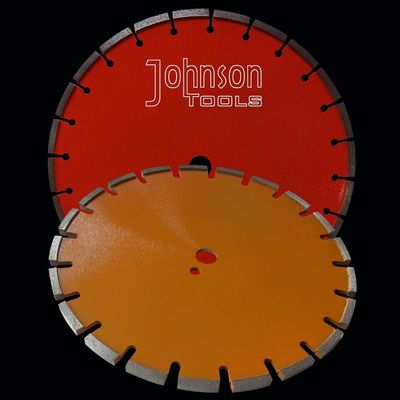

Large Image :  350mm 400mm 450mm loop saw blade

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 14"-18"
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiate
Packaging Details: White box, colored package
Delivery Time: Around 15-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per year

350mm 400mm 450mm loop saw blade

Description
Type: Loop Saw Blade Application: Grooving And Cutting Concrete
Manufacturing Process: Laser Welding Segment Height: 10/12/15mm
Color: Red, Orange, Clear Or As Your Request Package: High Speed Cutting, Long Lifetime
High Light:

concrete circular saw blade

,

circular saw concrete blade



14-18" Laser Welded Loop Diamond Saw Blades for Loop Line Traffic Light Detector Project



Features
a. Used for random crack saws.
b. Cutting expansion joints in fresh concrete or loop-line traffic light detector systems.
c. 100% laser welding for less dropping.
d. Thicker than normal steel cores for improved tracking.
e. Dry and wet cutting.
f.  Providing straight cutting and reducing vibrations for trouble free operation.
g. Designing for random crack repair and restoration.



350mm 400mm 450mm loop saw blade 0350mm 400mm 450mm loop saw blade 1



350mm 400mm 450mm loop saw blade 2


Specification
Diameter: 350mm-450mm
Segment height: 10mm, 12mm, 15mm.
Inner hole: 22.23mm, 25.4mm, 50mm or as your request



Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)

12" 300 40 6/8/10/12/14 10/12/15 20
14" 350 40 6/8/10/12/14 10/12/15 24
16" 400 40 6/8/10/12/14 10/12/15 28
18" 450 40 6/8/10/12/14 10/12/15 32
