350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade

Certification
China Johnson Tools Manufactory Co.,Ltd certification
China Johnson Tools Manufactory Co.,Ltd certification
Customer Reviews
To do the same bond as we use is very important. We did many tests at your blades And the performance is very good.

—— Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade.

—— Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete.

—— Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed.

—— Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s avery good indice!

—— Julia

And its good, We need more :) Saw blade 20x 600mm 20x 800mm 3x 1000mm 10x1200mm.

—— Kovacevic

I'm Online Chat Now

350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade

350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade
350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade 350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade 350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade

Large Image :  350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 350mm
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiate
Packaging Details: White box, colored package
Delivery Time: Around 15-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000pcs per year

350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade

Description
Type: 14 Inch Concrete Saw Blade Application: Concrete, Reinforced Concrete
Manufacturing Process: Laser Welding Inner Hole: 288mm
Color: Clear Or As Your Request Package: Neutral Packing
High Light:

concrete diamond blade

,

circular saw concrete blade



350mm Ring Diamond Concrete Saw Blades for Cutting Concrete, Reinforced Concrete



Ring saw blade can be most advantageous to achieve a large cutting depth (cutting depth up to 260mm), by replacing the different types of blades, you can easily complete the cutting of concrete pipes, concrete piles and even cutting sturdy automobile parts in fire fighting.



Feature

1. Apply to Husqvarna/partner K3600 Hydraulic cutting machine.

2. Cutting depth:260mm.

3. With good driving wheel.

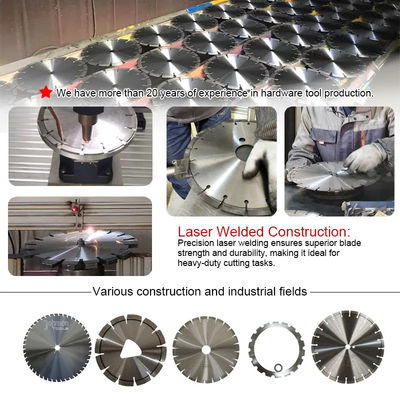

4. Laser welding technology could be dry cutting, and wet cutting better.

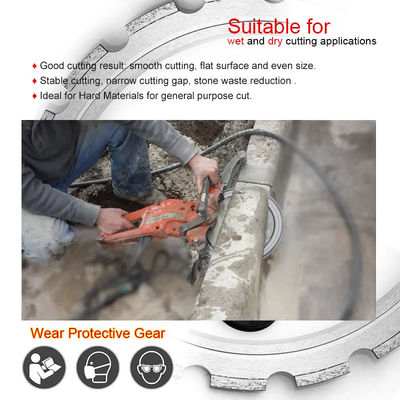

5. Ring sawing provides portable, quick cutting with minimal over-cuts, accessibility at construction and demolition sites.

6. Widely used in cutting concrete pipe, creating openings for electrical, plumbing or other needs in concrete walls, floors and ceilings, eliminating overcuts.

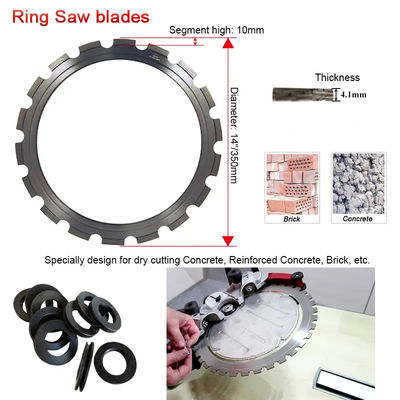

Specification

1. Diameter:350mm

2. Segment size:40x4.1x8/10mmx18nos

3. Inner hole:288mm

4. Slot:Wide U type



Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)

14" 350 40 4.1 8/10 18



Packing

1. 10pcs packed in one carton, carton size:38x38x15cm.

2. Net weight:1.2-1.5kg/pc.

3. Gross weight:12-15kg per carton. Around 350-400kg, need to pack in one pallet.

350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade 0

350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade 1





350mm Ring Saw Blade For Cutting Concrete , 14 Inch Concrete Saw Blade 2



Concrete saw blade.pdf
