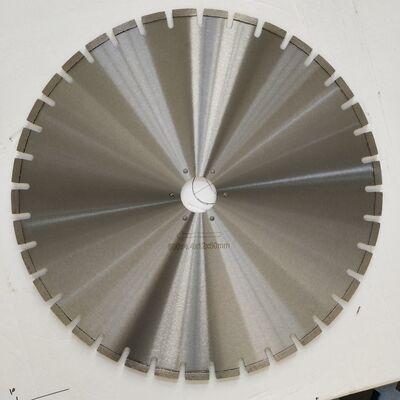

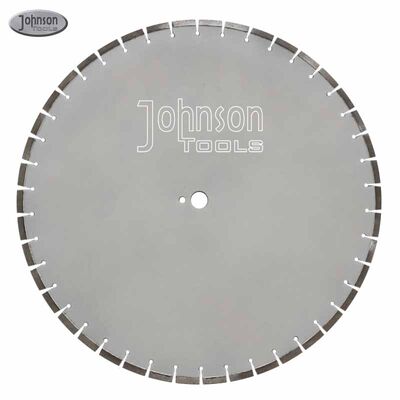

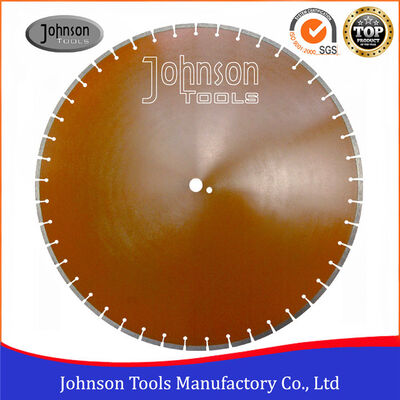

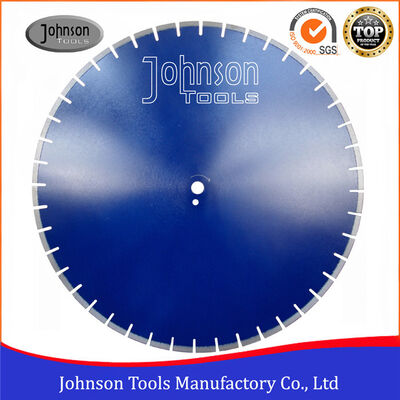

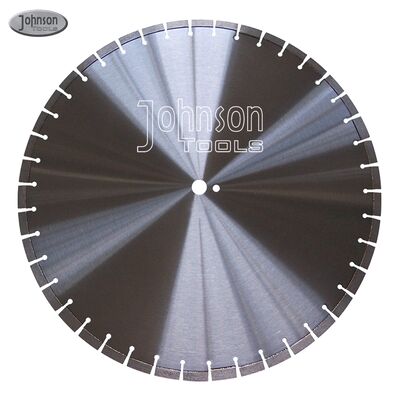

26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot

26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot

    • 26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot
    • 26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot
    • 26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot
    • 26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot
  • 26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot

    Product Details:

    Place of Origin: China
    Brand Name: Johnson Tools
    Certification: SGS, GB
    Model Number: 650mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: Negotiate
    Packaging Details: White box, colored package
    Delivery Time: Around 15-35days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per year
    Contact Now
    Detailed Product Description
    Type: Diamond Blades Manufacturing Process: Laser Welding
    Inner Hole: 25.4mm Slot: Key Or U Slot
    Segment Thickness: 4.4mm Segment Height: 10/12/15mm
    Cutting: Reinforced Concrete Pin Hole: φ12-28.575mm

    1. Description of 650mm Diamond Saw Blade with Sharp Segments for Reinforced Concrete


    650mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.

    Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.



    2. Process Flow Diagram



    Our company is found in 2000 years. Laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect are main products.

    The steel disc is purchased from one of the best base manufacturers in China. Segment is produced by our own factory, which has mature laser welding technology.

    Quality control for each product, such as the segment welding strength, hardness, packing way and marking style. We can make custom as you require. Screen printing, laser marking or logo stickers on the saw blades you can choose.



    26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot

    3. Specification of 650mm Diamond Saw Blade with Sharp Segments for Reinforced Concrete



    Diameter:650mm
    Segment thickness:4.4mm
    Segment height:10/12/15mm
    Inner hole:25.4mm, 50mm as your request



    Inch Diameter
    (mm)
    Teeth length
    (mm)
    Teeth thickness
    (mm)
    Teeth height
    (mm)
    Teeth number
    (nos)
    26" 650 40 4.4 10 42
    26" 650 40 4.4 12 42
    26" 650 40 4.4 15 42


    Other size Concrete Saw Blade we could do as following



    Inch Diameter
    (mm)
    Teeth length
    (mm)
    Teeth thickness
    (mm)
    Teeth height
    (mm)
    Teeth number
    (nos)
    4" 105 32 2.2 7/10/12 8
    4.5" 115 31 2.2 7/10/12 9
    5" 125 31 2.2 7/10/12 10
    6" 150 34 2.2 7/10/12 11
    7" 180 34 2.4 7/10/12 14
    8" 200 40 2.4 7/10/12 13
    9" 230 37 2.6 7/10/12 16
    10" 250 40 2.6 10/12/15 16
    12" 300 40 3.0 10/12/15 20
    14" 350 40 3.2 10/12/15 24
    16" 400 40 3.4 10/12/15 28
    18" 450 40 3.6 10/12/15 32
    20" 500 40 4.0 10/12/15 36
    24" 600 40 4.4 10/12/15 42
    28" 700 40 5.0 10/12/15 40

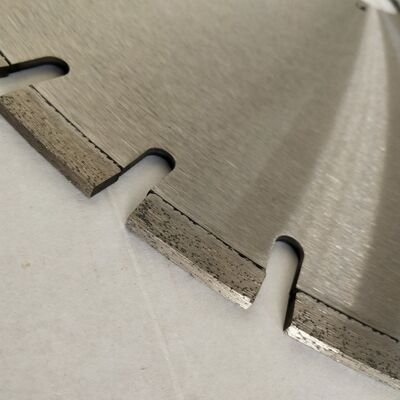

    650mm laser saw blade, segmnet sepc:40x4.4x12mm, key slot



    26" Outer Diameter 650mm Reinforced Concrete Diamond Saw Blade with Sharp Segments,Key Slot


    4. Packing and Shipping



    Each 26" laser saw blade is packed in white box, then 5pcs put in an export standard carton, gross weight per carton is limited within 45kg.

    Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

    Delivery way: By air, by sea, by land, by courier, etc.
