Product Details:
|
| Outer Diameter: | 125mm | Center Hole: | 16/20/22.23/25.4/50/60/80mm |
|---|---|---|---|
| Segment Thickness: | 2.2mm | Segment Height: | 7/10/12mm |
| Other Size: | 4'/5"/6"/7"/8"/9"/10"/12"/30" | ||
| High Light: | concrete circular saw blade,circular saw concrete blade |
||

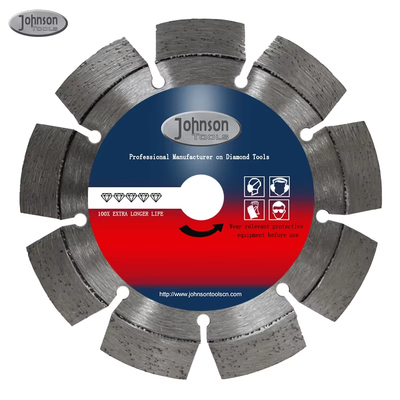

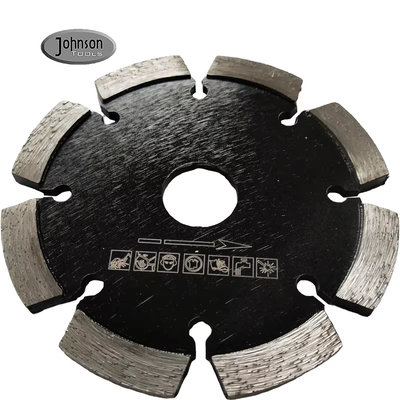

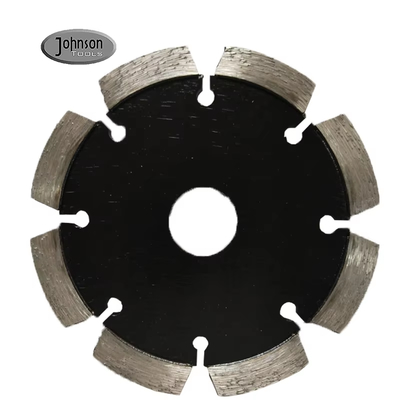

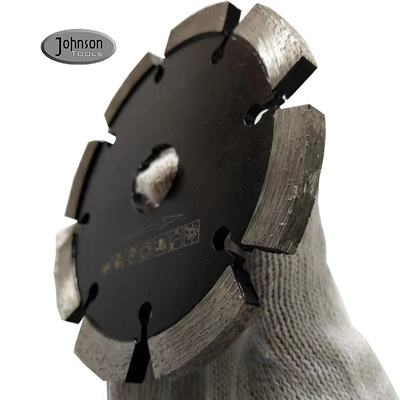

1. Description of 125mm Diamond Saw Blades with Long Lifetime for Cured Concrete Cutting
125mm Concrete Cutting Saw Blades are professionally designed for wet or dry cutting cured concrete,high quality diamond makes faster cuting and longer cutting life.Application on Angle Grinders.
2. Features of 125mm Diamond Saw Blades with Long Lifetime for Cured Concrete Cutting
Cutting cured concrete is not restrictedby the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.
3. Specification information of 125mm Diamond Saw Blades with Long Lifetime for Cured Concrete Cutting
Diameter:125mm
Segment thickness:2.2mm
Segment height:7/10/12mm
Inner hole:16/20/22.23/25.4/50/60/80mm ,or other special types you need
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
| 30" | 750 | 40 | 5.0 | 10/12/15 | 46 |
4. Packing and Shipping of 125mm Diamond Saw Blades with Long Lifetime for Cured Concrete Cutting
| Delivery way | By air, by sea, by land, by courier, etc |
| Shipping date | 15-35 days |
| Packaging | Carton box & wooden case &as your demand |
