Product Details:
|
Type: | Diamond Blades | Welding: | Laser Welding |
---|---|---|---|
Color: | Clear Or As Your Request | Cutting Type: | Straight Cutting |
Slot Type: | Straight U | Net Weight: | 13-14kg |
Highlight: | concrete wall cutting saw,concrete wall saw |

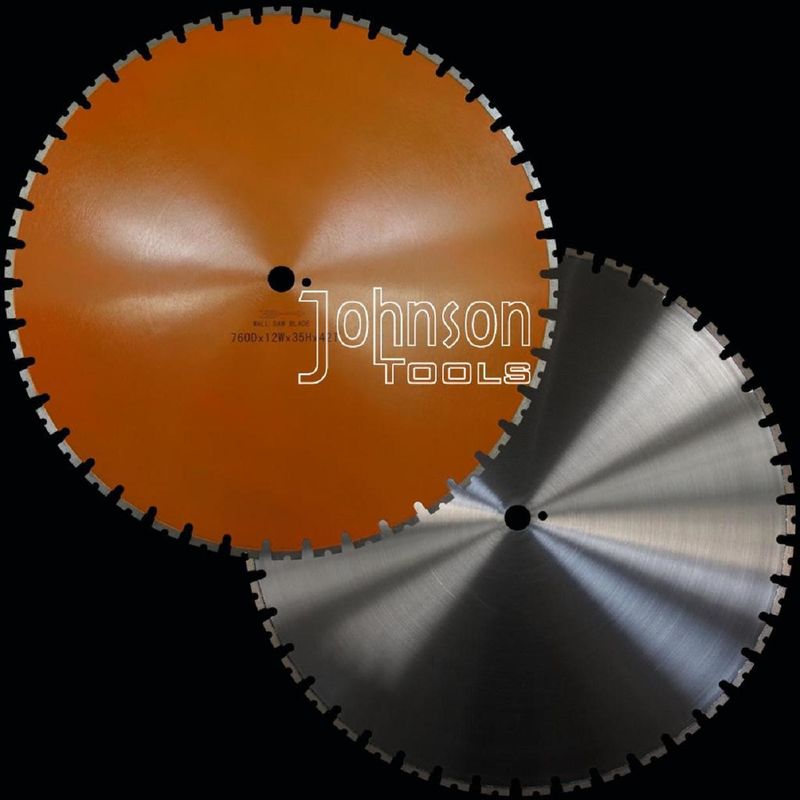

760mm Wall Saw Blades for Dry&Wet Cutting Highly Reinforced Concrete Walls
Feature:
1. 100% laser welding technology.
2. "Single U" type segment ensures the good cooling during cutting.
3. Straight U slot.
4. Fit to different machine systems, drive powers and materials.
5. Designed for cutting reinforced concrete, such as openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, as well as bridges demolition etc.
6. Well exported to America, European market.
Specification
Diameter:760mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole: 60mm or as your request
OD (mm) | Teeth specification | Hole(mm) | |||
Length (mm) | Thickness (mm) | Height (mm) | Number | ||
760 | 40 | 4.8 | 10 | 46 | 60 |
760 | 40 | 4.8 | 10 | 46 | 60 |
760 | 40 | 5 | 12 | 46 | 60 |
760 | 40 | 5 | 12 | 46 | 60 |
About us:
1. We have rich prducing and exporting experience for around 16 years.
2. Direct manufacturer and 100% export to worldwide (USA, Canada, Thailand, Singapore, TW, South Africa, Kenya, Australia, UK, Spain, Brazil, India, Malaysia, etc)
3. Our range of product: Laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products etc.
Provide the most suitable diamond tools and quickly service is our aim.
