Product Details:
|
Type: | Diamond Saw Blades | Application: | Grooving And Cutting Concrete |
---|---|---|---|
Manufacturing Process: | Laser Welding | Segment Height: | 10/12/15mm |
Color: | Red, Orange, Clear Or As Your Request | Package: | High Speed Cutting, Long Lifetime |
Highlight: | concrete circular saw blade,circular saw concrete blade |

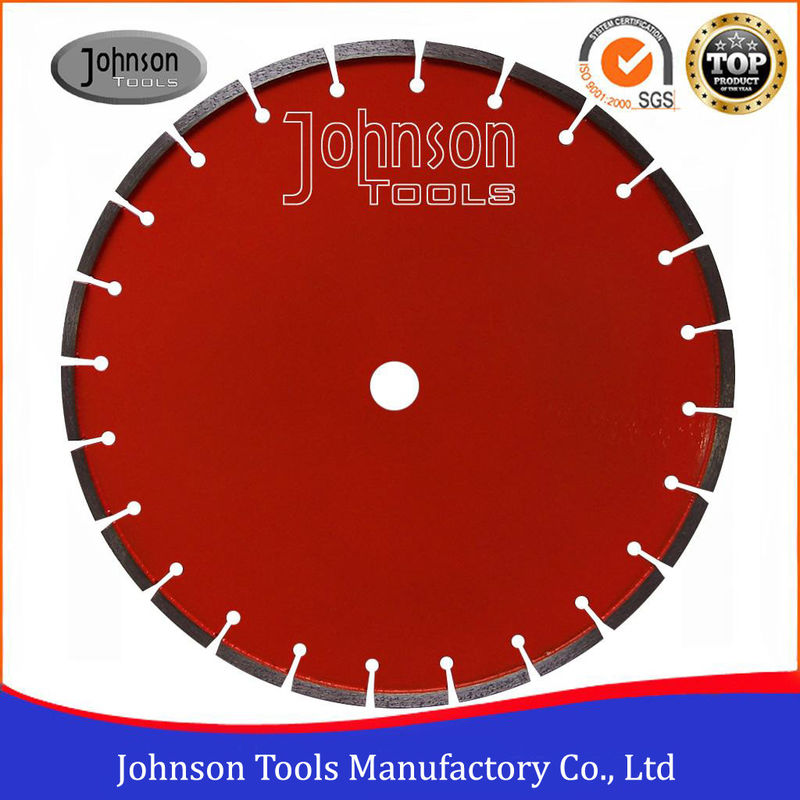

14-18" Laser Welded Loop Diamond Saw Blades for Loop Line Traffic Light Detector Project
Features
1. Used for random crack saws.
2. Cutting expansion joints in fresh concrete or loop-line traffic light detector systems.
3. 100% laser welding for less dropping.
4. Thicker than normal steel cores for improved tracking.
5. Dry and wet cutting.
6. Providing straight cutting and reducing vibrations for trouble free operation.
7. Designing for random crack repair and restoration.
Specification
1. Diameter: 300mm-450mm
2. Segment length:40mm
3. Segment thickness:6-14mm or as your request.
4. Segment height:10mm, 12mm, 15mm.
5. Inner hole: 22.23mm, 25.4mm, 50mm or as your request
Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
12" | 300 | 40 | 6/8/10/12/14 | 10/12/15 | 20 |
14" | 350 | 40 | 6/8/10/12/14 | 10/12/15 | 24 |
16" | 400 | 40 | 6/8/10/12/14 | 10/12/15 | 28 |
18" | 450 | 40 | 6/8/10/12/14 | 10/12/15 | 32 |
Packing
We usually pack our blades with white box, big size over 600mm use plywood. Can also do color box or other customs packaging if the quantity is large.
About us
1. We're a direct manufacturer and 100% export diamond tools to worldwide( Egypt, France, Australia, Ireland, UK, Belarus etc)
2. Found in 2000 years.
3. Main product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
