Product Details:
|
| Type: | Cement Saw Blade | Application: | Reinforced Concrete |
|---|---|---|---|
| Manufacturing Process: | Laser Welding | Net Weight: | 0.12-16.5kg |
| Package: | 5-100pcs Per Carton | Marks: | Laser Marking Or Print As Request |
| High Light: | concrete diamond blade,concrete circular saw blade |
||

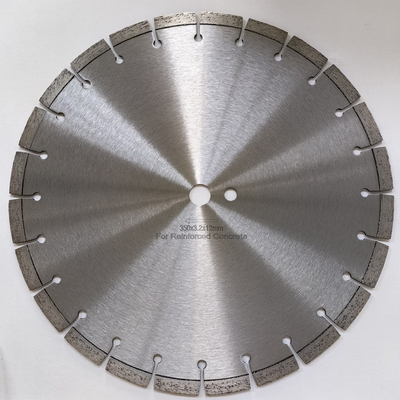

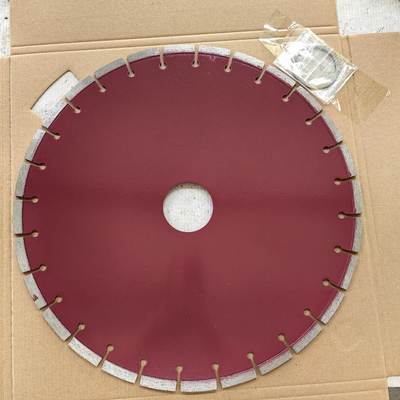

105-600mm Laser Welded Diamond Concrete Saw Blades for Reinforced Concrete Cutting
Concrete Cutting Saw Blades are professionally designed for wet or dry cutting reinforced concrete, high quality diamond makes faster cutting and longer cutting life.
Laser welded segment can increase strength under high temperature and provide better cutting performance.
Application on Angle Grinders, table Saws, walk behind concrete saws, handheld power saws.
Specification
1. Diameter size:105-600mm
2. Segment thickness:2.2-4.4mm
3. Segment height: 7/10/12/15mm
4. Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm.
| Inch | Diameter | Teeth length | Teeth thickness | Teeth height | Teeth number |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
Other special sizes could be made upon request.
Company advantage
The steel disc is purchased from one of the best base manufacturers in China. Segment is produced by our own factory, which has mature laser welding technology. Laser saw blades are able to be produced up to outer diameter 1800mm. Quality control for each product, such as the segment welding strength, hardness, packing way and marking style
