Laser Welded Diamond Loop Saw Blade For Cutting Concrete Reinforced Concrete

Laser Welded Diamond Loop Saw Blade For Cutting Concrete, Reinforced Concrete, Aspahlt, Asphalt/Concrete

1.Description:

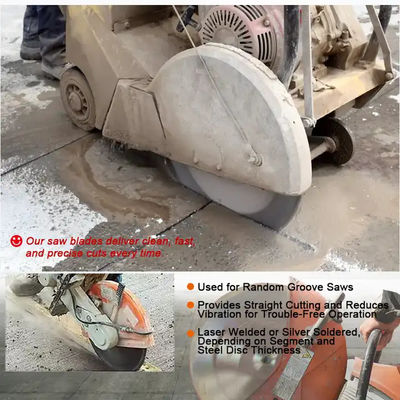

Loop diamond concrete saw blades are specifically designed for cutting and grooving concrete and asphalt to accommodate the installation of Traffic Safety Detectors. These blades provide a straight cutting action and effectively minimize vibrations, ensuring trouble-free operation.

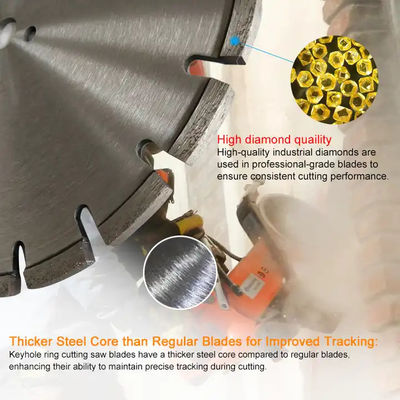

Typically, the segments of these blades feature steel cores that are thicker than those found in regular saw blades, resulting in improved tracking. All blades can undergo laser welding, but if the thickness exceeds 14mm, silver brazing is the preferred method. Currently, these blades are widely exported to the European, African, and Australian markets, receiving positive feedback.

We take pride in offering our clients excellent after-sales service and professional technical assistance. Our diamond concrete saw blades come in three quality grades: Professional, Premium, and Standard. The various protection segments prevent abrasive materials from causing wear and tear to the steel core.

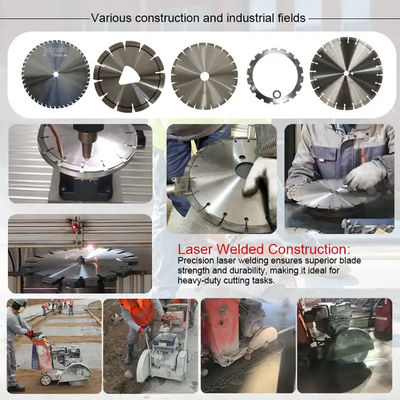

Our blades ensure maximum cutting performance and an extended lifespan due to their tough, wear-resistant segments. The laser welding technique employed provides superior aggressiveness and smooth cutting. These blades are suitable for use with table cutting machines, bridge cutting machines, manual hand cutting machines, and more.

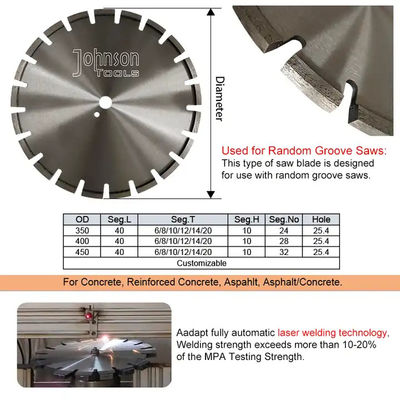

2.Specification:



Inch	Diameter (mm)	Teeth Length (mm)	Teeth Width (mm)	Teeth Height (mm)	Teeth Number (nos)
12"	300	40	6/8/10/12/14	10/12/15	20
14"	350	40	6/8/10/12/14	10/12/15	24
16"	400	40	6/8/10/12/14	10/12/15	28
18"	450	40	6/8/10/12/14	10/12/15	32
