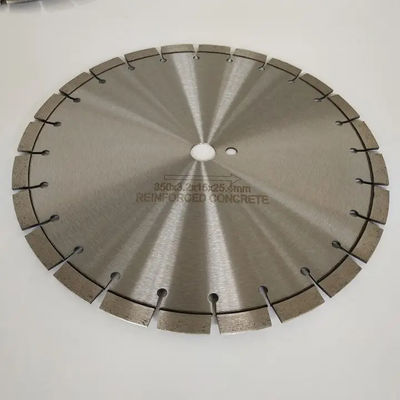

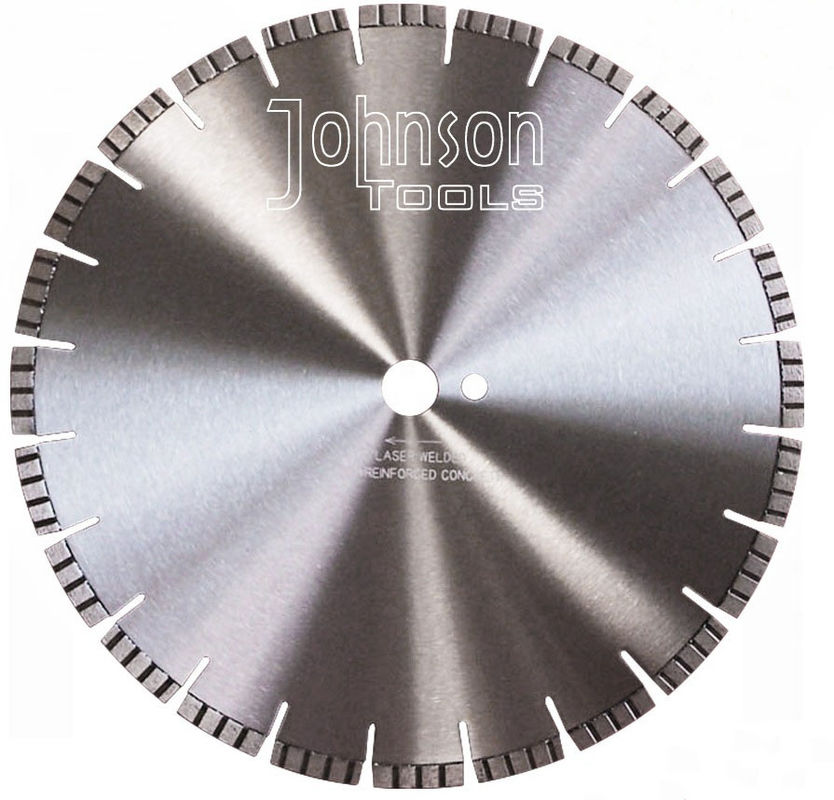

350mm 14 Inch Laser Welded Concrete Saw Blades For Circular Saw
Laser Welded concrete saw blades
,14 inch concrete saw blades
,350mm concrete blade for circular saw
14 inch Diamond Laser Welded Turbo Segments Concrete Saw Blades for Fast Cutting Reinforced Concrete
Description
350mm Diamond cutting blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
Features
1) Undercut Protection segments provide longer lifetime when cutting Abrasive Materials.
2) Fits to Petrol Cutters, Bench & Floor Saw Machines.
3) Different Cutting slot have different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
4) Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
Specification
Diameter:350mm
Segment thickness:3.2mm
Segment height:10/12/15mm
Inner hole:25.4mm, 60mm or others
| Inch | Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 14" | 350 | 3.2 | 10/12/15 | 24 | 25.4 |
Other Size:
| OD (mm) | Teeth specification | Hole(mm) | |||
| Length (mm) | Thickness (mm) | Height (mm) | Number | ||
| 400 | 40 | 3.4 | 12 | 28 | 25.4 |
| 500 | 40 | 4.0 | 10/12/15 | 36 | 25.4 |
| 600 | 40 | 4.4 | 10/12/15 | 42 | 25.4 |
| 650 | 40 | 4.8/5.0 | 10/12/15 | 42 | 25.4 |
| 750 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 800 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 900 | 40 | 4.8/5.0 | 10/12/15 | 52 | 25.4 |
| 1200 | 40 | 4.8/5.0 | 10/12/15 | 68 | 25.4 |
| 1500 | 40 | 4.8/5.0 | 10/12/15 | 90 | 25.4 |
