50MPA Diamond Products Concrete Saw 50mm Center Hole
50MPA diamond products concrete saw
,50mm hole diamond products concrete saw
,50mm hole diamond concrete cutting saw

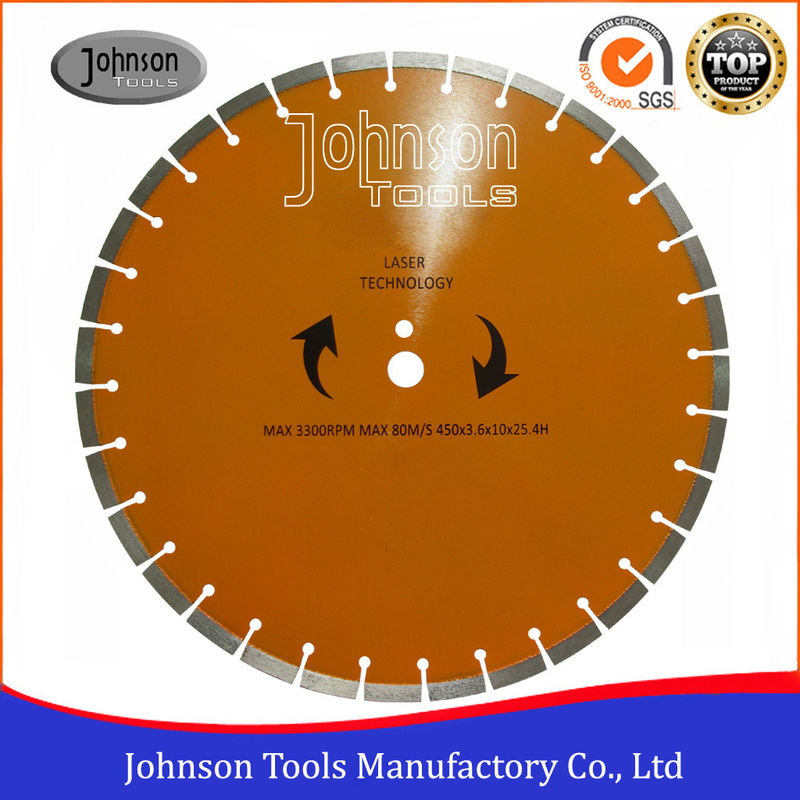

1. Description of 20" Soft Bond Blade for Smoothly Cutting Very Hard Reinforced Concrete with 50 MPA
This is the high grade laser welded diamond blade for cutting reinforced concrete we well export to EU markets, fast cutting and long life for cutting very hard reinforced concrete with 50 MPA! If you are looking for a high quality diamond blades with reasonable price, we are your best choice.
2. Specification information of 20" Soft Bond Blade for Smoothly Cutting Very Hard Reinforced Concrete with 50 MPA
Diameter:500mm
Segment thickness:4.0mm
Segment height:12mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 20" | 500 | 40 | 4.0 | 12 | 36 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
3.Feature of 20" Soft Bond Blade for Smoothly Cutting Very Hard Reinforced Concrete with 50 MPA
1)Soft Bond segment designed for cutting extra hard reinforced concrete.
2)Turbo segment allows quick remove mortar and better cooling result.
3)12mm segment height for a longer life, can also do 15mm according your request.
4)Silent core, cooling holes, special size and type segment, arbor hole is available .
4. MPA Certificate
Our laser welded blade passed the test of MPA, in accordance with the high quality demand of EU market.
