5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit
5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit
5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit

Large Image :  5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit

Product Details:
Place of Origin: CHINA
Brand Name: JOHNSON TOOLS
Certification: GB, SGS
Model Number: D12
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

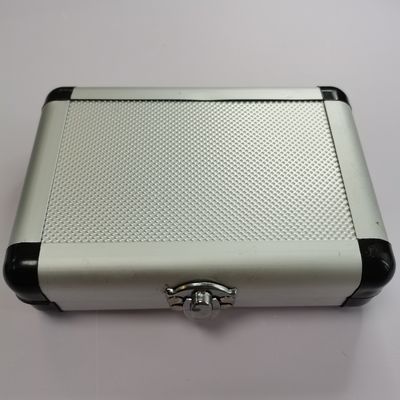

Packaging Details: Aluminum Box
Delivery Time: 15days.
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100000pcs per month

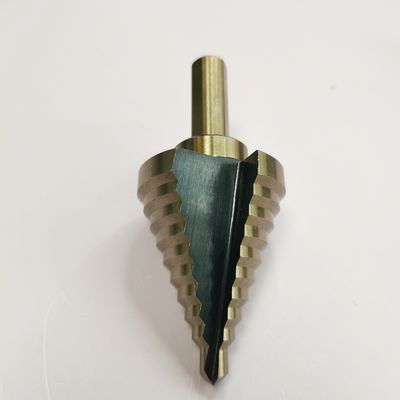

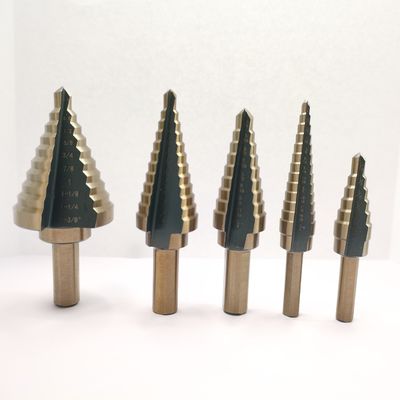

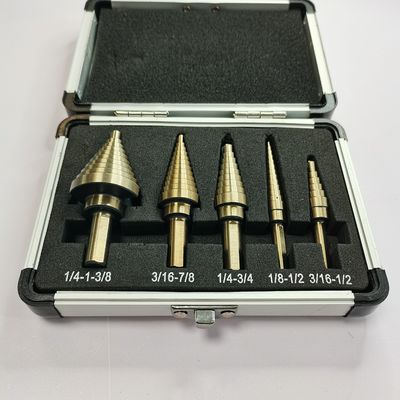

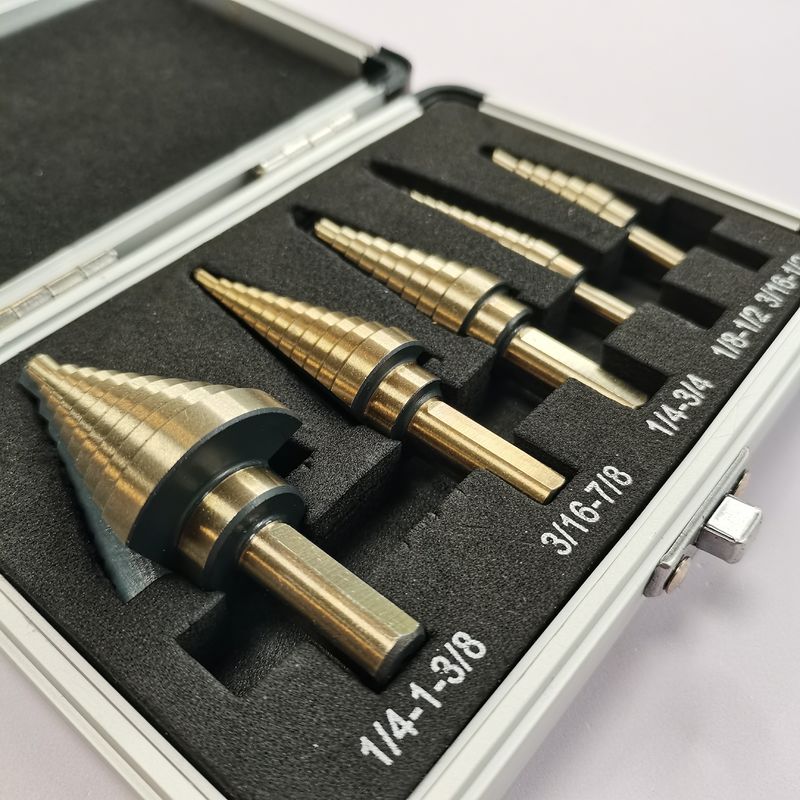

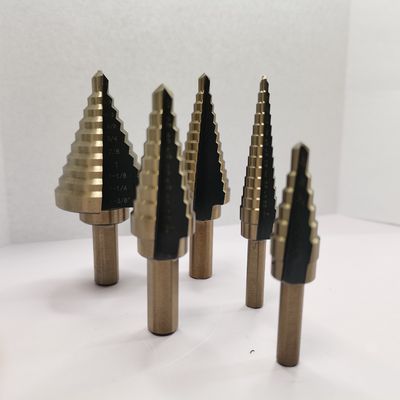

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit

Description
Products Name: 5pcs HSS Titanium Triangle Shank Step Cone Taper Drill Bits Set For Metal Drilling Material: HSS4241
Size: 4-32mm Connection: Triangle Shank
Diameter Of Shank: 6.35mm Feature: Fast Speed Drilling And High Finlishing
High Light:

HSS triangle shank drill bit

,

5pcs triangle shank drill bit

,

6.35mm step cone drill bit



Product Name



5pcs HSS Titanium Triangle Shank step cone taper drill Bits Set for Metal Drilling



Size





6Steps: 3/16-1/2''(3/16,1/4,5/16,3/8,7/16,1/2)



8Steps:1/4-3/4''(1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4)



9Steps:1/4-1-3/8''(1/4,3/8,1/2,5/8,3/4,7/8,1,1-1/8,1-1/4,1-3/8)



12Steps:1/8-1/2''(1/8,5/32.7/32.1/4,9/32,5/16,11/32,3/8,13/32,7/16,15/32,1/2)



12Steps:3/16-7/8''(3/16,1/4,5/16,3/8,7/16,1/2,9/16,5/8, 11/16,3/4,13/16,7/8)



Conection



Triangle Shank



Material



HSS 4241



Finishing



Titanium Coated



Application



Metal, Aluminum, Wood drilling



Features



1. Strong Durability: coated by titanium, the bits have strong durability. This step drill set performs well in heat, corrosion and rust resistance.



2. Premium HSS Material: High-speed steel construction for longer cutting edge life even at extreme temperatures.



3. Automatic Center Punch: Delivers an automatic, high-impact, spring-loaded strike when pressed against surface, adjustable cap regulates striking force



4. Wide Usages: Perfect for home repairs and light jobs such as drilling holes in plastic, aluminum, copper,stainless steel and many other types of sheet metal.





5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 0

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 1



5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 2



5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 3

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 4

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 5

5pcs HSS Titanium Step Cone Taper Triangle Shank Drill Bit 6
