Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable

Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable
Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable
Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable

Large Image :  Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable

Product Details:
Place of Origin: CHINA
Brand Name: JOHNSON TOOLS
Certification: GB, SGS
Model Number: CB-VB 6-68mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now

Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable

Description
Products: OD20-68mm Vacuum Brazed Diamond Core Drilling Bits For Ceramic M14 Plastic Box Set Technology: Vacuum Brazed Type
Size: 20/25/27/35/40/50/55/68mm Thread: M14 Or 5/8"-11
Use: Dry Drilling Ceramic, Marble,granite, Etc Segemt Height: 15mm
Total Length: 62mm Packing: Aluminum Box
High Light:

68mm diamond tip core bit

,

reaming diamond tip core bit

,

reaming 68mm diamond core bit

OD20-68mm Vacuum brazed diamond core drilling bits for ceramic M14 plastic box set

Decription:

* Vacuum Brazed technology, the diamond particles are firmly welded to the base body, diamond never fall off
* Dry or wet use
* Less Chipping, minimizing breakage, less heat generation, Better finish quality
* Fast and Smooth drilling, long lifetime
* Application for drilling and reaming tile ceramic granite marble stone masonry, brick, etc.

  • We can do Customized logo lasering and size lasering by ourself.
  • The Hex shaft makes these perfect for use in a battery drill driver.
  • Can comfortably drill 45 or more holes in the hardest grade 5 porcelain.
  • Allow the drill and the rotation to cut the hole.
  • Never use the hammer action it will destroy the diamond tip.
  • Use at around 1500-3000 rpm.
Product Name  Diamond Tile Core Drill Bit Set
Appilcation Tile/Porcelain/Ceramic
Usage Dry Use




Out Diameter Total Length Connection Teeth Height
20mm 62mm M14 or 5/8"-11Thread 10mm
25mm 62mm M14 or 5/8"-11Thread 15mm
27mm 62mm M14 or 5/8"-11Thread 15mm
35mm 62mm M14 or 5/8"-11Thread 15mm
40mm 62mm M14 or 5/8"-11Thread 15mm
50mm 62mm M14 or 5/8"-11Thread 15mm
55mm 62mm M14 or 5/8"-11Thread 15mm
68mm 62mm M14 or 5/8"-11Thread 15mm



Product Display:

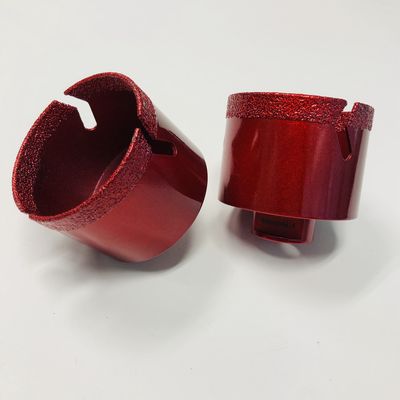

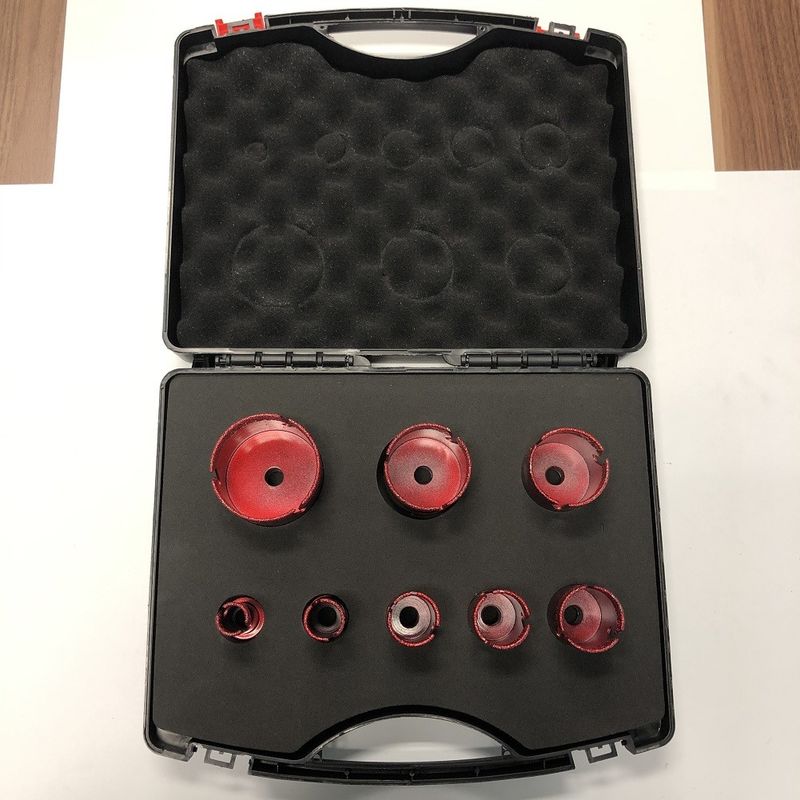

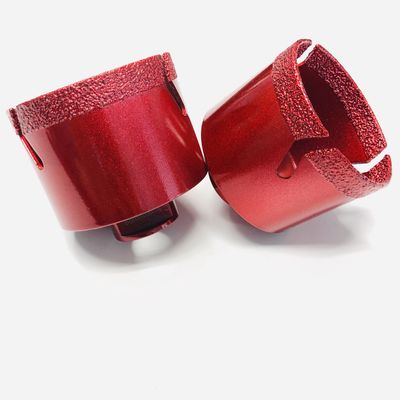

Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable 0

Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable 1

Other Bit Sets:

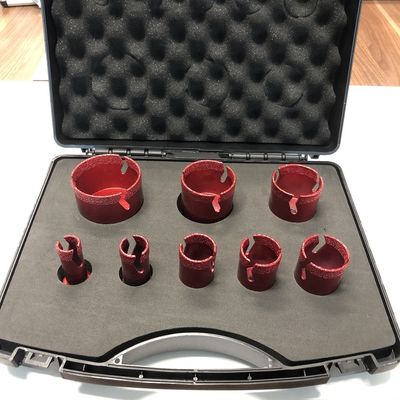

Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable 2




Product Application:
Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable 3
Reaming 68mm Diamond Tip Core Bit Hex Shaft 3000rpm Suitable 4
