Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain

Large Image : Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain

Product Details:

Place of Origin:	CHINA
Brand Name:	JOHNSON TOOLS
Certification:	GB, SGS
Model Number:	CB-VB 6-68mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Aluminum Box
Delivery Time:	15days.
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain

Description

Products:	Tile Drill Diamond Bit Set	Technology:	Vacuum Brazed Type
Size:	20/35/40/50/68mm	Thread:	M14 Or 5/8"-11
Use:	Dry Drilling Ceramic, Marble,granite, Etc	Segemt Height:	15mm
Total Length:	62mm	Packing:	Aluminum Box
Highlight:	Brazed granite Core Drill Bits , 50mm granite Core Drill Bits , Brazed 50mm diamond drill bit

Dry Vacuum Brazed Diamond Porcelain Stone Tiles Hole Saw Core Bit Drills

Decription:

* Vacuum Brazed technology, the diamond particles are firmly welded to the base body, diamond never fall off
* Dry or wet use
* Less Chipping, minimizing breakage, less heat generation, Better finish quality
* Fast and Smooth drilling, long lifetime
* Application for drilling and reaming tile ceramic granite marble stone masonry, brick, etc.

Product Name	Tile Hole Saw Core Bits Drills
Appilcation	Tile/Porcelain/Ceramic
Usage	Dry Use

Out Diameter	Total Length	Connection	Teeth Height
20mm	62mm	M14 or 5/8"-11Thread	10mm
35mm	62mm	M14 or 5/8"-11Thread	15mm
40mm	62mm	M14 or 5/8"-11Thread	15mm
50mm	62mm	M14 or 5/8"-11Thread	15mm
68mm	62mm	M14 or 5/8"-11Thread	15mm

Product Display:

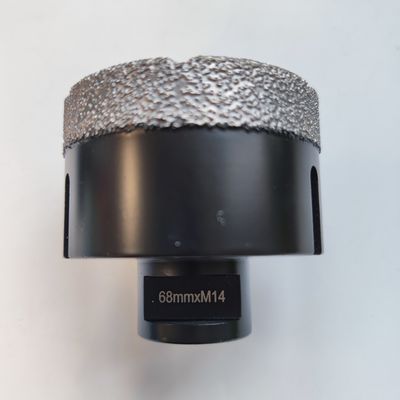

Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain 1

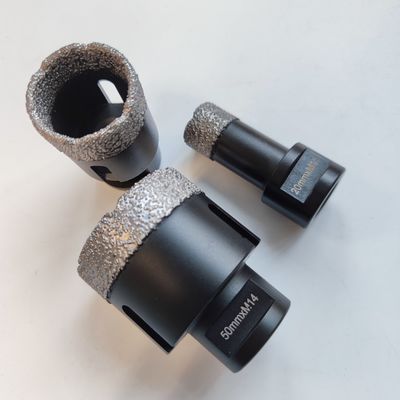

Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain 2

Other Bit Sets:

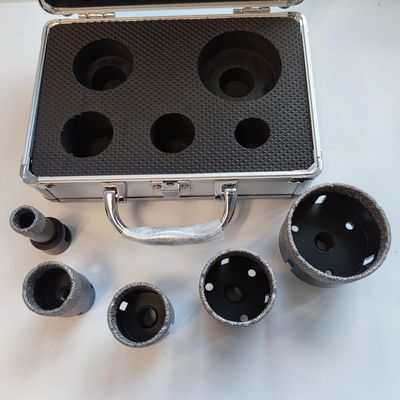

Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain 3

Product Application:

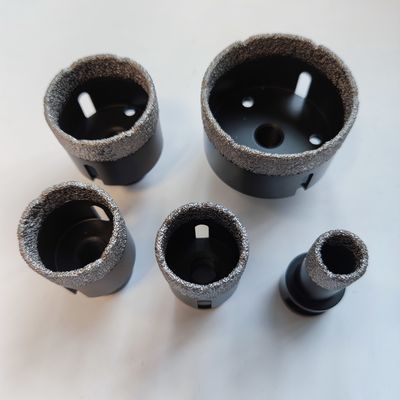

Vacuum Brazed Diamond Dry Core Drill Bits for Porcelain 4
