SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite

SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite
SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite
SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite

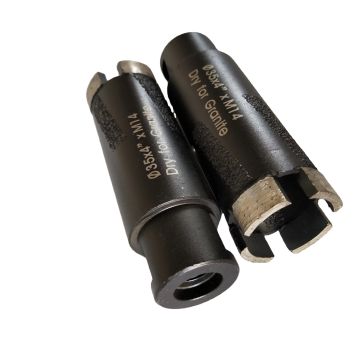

Large Image :  SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite

Product Details:
Place of Origin: CHINA
Brand Name: JOHNSON TOOLS
Certification: GB , SGS
Model Number: 35mm
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 11.5usd,18usd
Packaging Details: White box
Delivery Time: 20days after getting your payment
Payment Terms: L/C, T/T, Western Union,Paypel
Supply Ability: 10000pcs per month

SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite

Description
HS Code: 8207501000 Application: Granite,Quartz, And Marble And Other Stones
Size: 35mm And Other Size Connector Type: 1/2” Shaft, 5/8”-11 Thread
Machine:: Core Drilling Machines Or Hand Machines Segment Type: Crown Segment Or Normal Segment
Working Lenth: 100mm Lead Time: Around 20days
Color: Black Or As Your Request
High Light:

Diamond Core Bit

,

Concrete Core Drill Bit



35mm Diamond Dry Core Drills Bits for Granite,Quartz and Marble



Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Quick Delivery time
4. One-Day reply to your inquiry and question.



1.Description of Dry Core Drills: OD35mm Diamond Dry Core Bits for Granite,Quartz, and Marble


Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
Premium grade core bits that deliver fast drilling speed and extend product life.
Use application with core drilling machines and hand drills.
Production strictly according to customer requirements.
Size could be customized.



2. Features of Dry Core Drills: OD35mm Diamond Dry Core Bits for Granite,Quartz, and Marble


1. Applications: Stone drilling in counter top, kitchen, toilet
2. Connection Type: 1/2” shaft, 5/8”-11 or M14 thread
3. Segment type: Crown segment or normal segment
4. Welding way: Outer diameter ≤ 18mm is silver soldering, ≥ 20mm is laser welding.

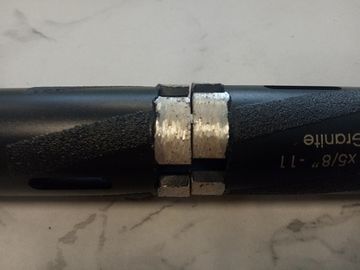

5. Selling point:Each drill bit has the brazing rods, four outside and two inside, which protect the steel disc, extend the life. Outer diameter is less than or equal to OD18 do not have brazing rod.

6. Delivery time: Around 15days

7. Price: Large quantities, price concessions. The quantity is greater than 100 per order and can be offered for a discount of 5%.

8. Accept sample order to have a test.



Other specification details:

Dry core bits for granite
Diameter Segment Dimension Teeth No. Vacuum brazed Protect Teeth
mm Height Thickness
6 10 2 Crown ——
8 10 2 Crown ——
10 10 2 Crown ——
12 10 2.5 Crown ——
14 10 2.5 Crown ——
16 10 2.5 Crown ——
18 10 2.5 Crown ——
20 10 2.5 Crown 4(O)2(I)
25 10 2.5 Crown 4(O)2(I)
32 10 3 4 4(O)2(I)
35 10 3 4 4(O)2(I)
38 10 3 4 4(O)2(I)
50 10 3 5 4(O)2(I)
60 10 3 6 4(O)2(I)
70 10 3 7 4(O)2(I)
80 10 3 8 4(O)2(I)
90 10 3 9 4(O)2(I)
100 10 3.5 9 4(O)2(I)



SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 0



How dose a dry diamond core bit work?



A diamond core bit does not cut but works by milling. During the sharpening process performed at the factory, individual diamond crystals are exposed on the face and sides of the segment and it is these that do the milling work. The metal matrix holds each diamond in place. During the work, each diamond is supported by a comet’s tail which strengthens the supporting action of the bond immediately “behind” the diamond crystals.


A diamond tool properly suited to the material to be cut, the equilibrium between the work of the diamond and the abrasion-resistance of the bond is optimum; the diamond is held in place until it is destroyed and new crystals appear. It is in this equilibrium that all the quality of the diamond tool resides.



6mm,8mm,10mm-100mm Diamond Dry Core Drills Bits with brazing rods, usually for toilets, kitchen, counter tops and other decoration, drill quartz, granite, marble, etc.



SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 1







3.Packing and shipping



1) Package: Each Core drill bits are packed in plastic box, then according to the size, normal put in an export standard carton, gross weight per carton is limited within 15-20kg.

2) Delivery way: Air Freight when gross weight is above 45kg and less than 100kg. Fast delivery.
Sea Freight when the gross weight is above 100kg. Cheaper freight charge.
Courier (TNT, DHL, FedEx, Ups, etc). Small try order, door to door service.
3) Shipping date: If we have steel body in our stock, normally shipment will be around 7-10 days. If not, usually around 20-30days.



SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 2



4.Payment terms
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

5. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!



6. Our Replated products

SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 3

SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 4

SGS OD 35mm Dry Diamond Core Drill Bits With Brazing Rods For Granite 5

FAQS



1) Does your company accept OEM?
We accept OEM orders for all products , as well as buyers' logos.

2) Quality Control?
Each product is strictly checked by of QC dept . We have completed file data in our computer which listed the whole processing of each order. Once the quality of sample order confirmed by clients , we will keep the same formula in the following orders. 15years producing experience , we will bring the most suitable products based on different markets.

3) Shipping Methods?
Air Freight when gross weight is above 45kg and less than 100kg. Fast delivery
Sea Freight when the gross weight is above 100kg. Cheaper freight charge.
Courier (TNT, DHL, FedEx, Ups, etc). Small sample order, door to door service.
4) Minimum Order and Delivery?
Minimum order: negotiable.
Delivery: 15days. Based on the quantity per order.





Want to learn more, contact us, and get more informations!
