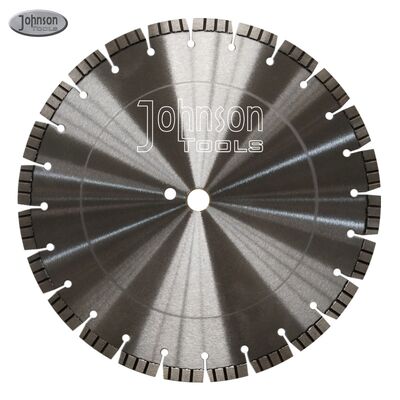

180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete

180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete
180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete

Large Image :  180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 125mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 15-35days
Payment Terms: Western Union, L/C, T/T,PayPal
Supply Ability: 1000pcs per month

180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete

Description
Outer Diameter: 180mm Center Hole: 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Segment Thickness: 2.4mm Segment Height: 7/10/12mm
High Light:

concrete circular saw blade

,

circular saw concrete blade



1. Description of 180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete



180mm Turbo Concrete Cutting Saw Blades are professionally designed for wet or dry cutting reinforced concrete, high quality diamond makes faster cuting and longer cutting life.



2. Specification information of 180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete



Diameter:180mm
Segment thickness:2.4mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
7" 180 34 2.4 7/10/12 14


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40





3.Feature of 180mm Diamond Turbo Cutting Saw Blades for Fast Cutting Reinforced Concrete



1) High precision and speed for cutting reinforced concrete


2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.





4. Packing and Shipping



Each laser saw blade is packed in white box, then 100pcs put in an export standard carton, gross weight per carton is limited within 13kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
