Product Details:
|
| Outer Diameter: | 500mm | Center Hole: | 25.4mm, 50mm As Your Request |
|---|---|---|---|
| Segment Thickness: | 4mm | Segment Height: | 10/12/15mm |
| Other Size: | 4"/4.5"/5"/6"/7"/8"/9"/10"/12"/14"/16"/18"/20"/24"/26"/28"/30" | ||
| High Light: | concrete circular saw blade,circular saw concrete blade |
||

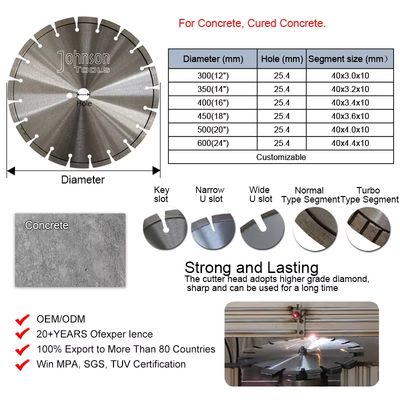

1. Description of 500mm Diamond Saw Blade for Reinforced Concrete with Good Efficiency
500mm diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.
Well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.
2. Specification information of 500mm Diamond Saw Blade for Reinforced Concrete with Good Efficiency
Diameter:500mm
Segment thickness:4.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 20" | 500 | 40 | 4.0 | 10 | 36 |
| 20" | 500 | 40 | 4.0 | 12 | 36 |
| 20" | 500 | 40 | 4.0 | 15 | 36 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
| 30" | 750 | 40 | 5.0 | 10/12/15 | 46 |
3. Related products
Other saw blades you can choose: turbo saw blade, silent concrete saw blade, Ring Saw Blade, Reinforced concrete saw blade, Loop saw blade, Precast&prestressed saw blade, Brick saw blade, etc.
4. Packing and Shipping
Each 20" laser saw blade is packed in white box, then 5pcs put in an export standard carton, gross weight per carton is limited within 29kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
