Product Details:
|
| Products: | Diamond Coated Core Drill Bits | Technology: | Vacuum Brazed |
|---|---|---|---|
| Application: | Ceramic, Porcelain, Tile, Granite, Marble, Stone. | Out Dimeter: | 5-180mm |
| Thread: | M14, 5/8"-11, Hex Shank, Round Shank, Hex Quick Release Shank. | Material: | Diamond + Metal Powder |
| Usage: | Wet Or Dry |

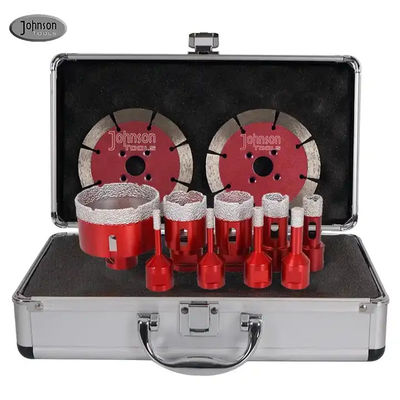

Vacuum Brazed Coring Drilling Hole Saw Set Diamond Crowns Core Drill Bit For Ceramics Tiles Marble Granite Porcelain.
1.Description:

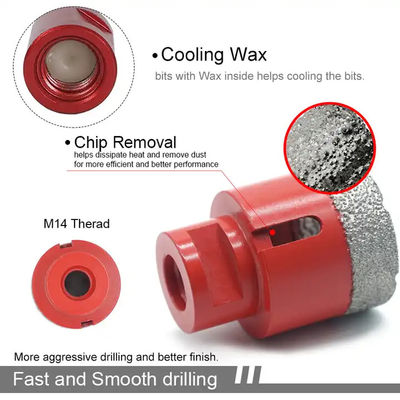

This hole saw drill bit set features an M14 thread and is compatible with angle grinders. The U-shaped chip grooves are innovatively designed to enhance durability, ensuring efficient and seamless drilling.
The diamond hole saw drill bit set is versatile, suitable for both dry and wet applications, catering to a diverse range of needs. Adding water is recommended for extended service life.
Cutting Options for All Environments. Whether in wet or dry conditions, this hole saw bit offers flexibility to adapt to different user environments. Introducing a small amount of water enhances the cutting process.
User-Friendly Operation. Begin by positioning the hole drill at a 45-degree angle, then smoothly transition to a 90-degree angle with the horizontal surface for continued drilling. This installation is effortless and ensures convenient operation.

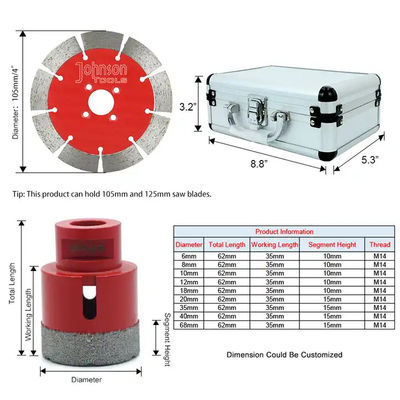

2.Specification
| Product Name | Vacuum Brazed Coring Drilling Hole Saw Set Diamond Crowns Core Drill Bit for Ceramics Tiles Marble Granite Porcelain |
|---|---|
| Outer Diameter | 6, 8, 10, 12, 18, 20, 35, 40, 68mm |
| Total Length | About 62mm |
| Diamond Height | 10/15mm |
| Shank Type | M14 Thread, 5/8"-11, Hex Shank, Round Shank, Hex Quickrelease Shank |
| Application Machine | Angle Grinder, Hand Drill, Electric Drill |
