Product Details:
|
| Type: | Diamond Saw Blade | Cutting Material: | Asphalt, Asphalt Over Than Concrete |
|---|---|---|---|
| Processing Technology: | Laser Welding | Hole Size: | 22.23/25.4/50/60 Or Do As Your Request |
| Advantage: | Fast Cutting | Segment Material: | High Grade Diamond Powder |
| High Light: | Disc Laser Diamond Saw Blades,Asphalt Road Diamond Saw Blades,Laser Welding Asphalt Cutting Blades |
||

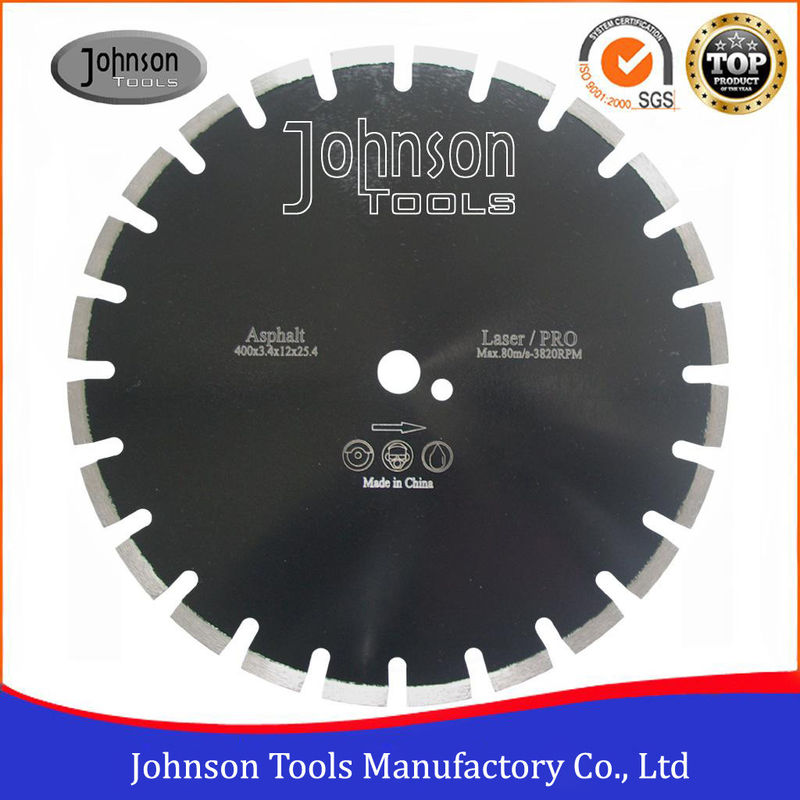

Asphalt road cutting disc laser diamond saw blades
According to the characteristics of concrete materials, We divided the formula of the segments into four different levels below:
• Grade A is for cutting prestressed reinforced steel concrete square stalk and tubular pile, prestressed concrete bridge,as well as high strength high-density concrete products whose prestressing force is over C60.
• Grade B is Used for cutting cobblestones and granite stone concrete roadbeds whose prestressing force is lower than C30.
• Grade C is suitable for cutting reinforced concrete walls, Ordinary cement concrete pavement, and the asphalt concrete road surface.
• Grade D is for cutting the cement concrete slab, ordinary concrete plate, cement asbestos tile, cement tile, glazed tile, etc.
Specification
1. Size:105-600mm
2. Segment length:32-40mm
3. Segment thickness:2.2-4.4mm
4. Segment height:10/12/15mm or as your request.
5. Inner hole:16mm, 20mm, 22.23mm, 27mm, 25.4mm, 50mm, 60mm or as your request.
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 10/12/15 | 9 |
| 5" | 125 | 31 | 2.2 | 10/12/15 | 10 |
| 6" | 150 | 34 | 2.2 | 10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
