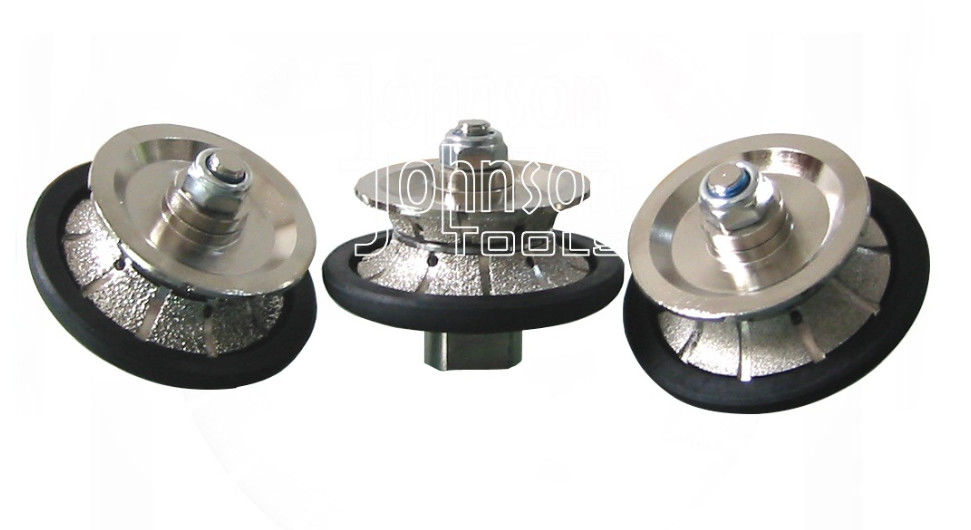

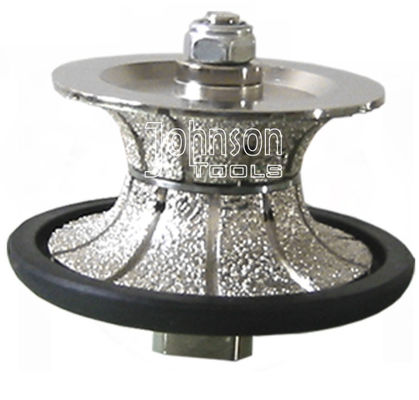

Vacuum Brazed 85mm Full Bullnose Diamond Hand Profile Wheel for Stone Edge
Description:
Vacuum brazed diamond manual-type wheels are for shaping the edge or curve line for granite and marble on manual-type profiling machine. Special customer's design is available. Main shapes are including Ogee, Cove, Full bullnose, Demi bullnose, Normandy Bead, Dupont, eased, bevel, etc.

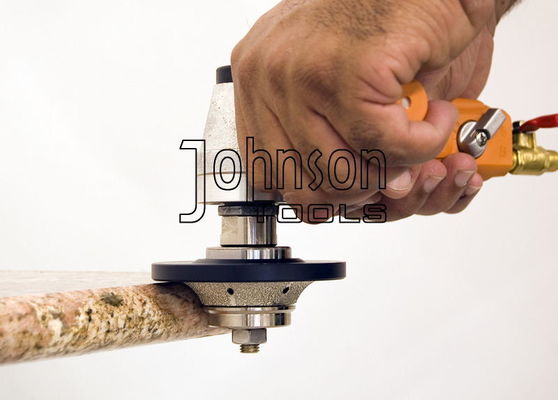

An operator with Hand Profilers, can easily create a perfect edge profile of Ogee, Bullnose, Bevel or Roundovers. The Profilers can be used on the materials as follows: Granite, Engineered Stone, Porcelain, Marble and Limestone. Can be used on concrete also, but life will be short due to the abrasive nature of concrete. Adopting the latest “Vacuum Brazed Technology”,which give you aggressive grinding action and longevity, without losing the shape of the profile, unlike the Sintered profilers on the market
Feature:
Vacuum brazed diamond router bits adopt the latest technology, provide the most aggressive performance and highest efficiency. Brazed diamond router bits can increase your productivity. It can keep their true shapes during their entire working. Apply to Portable stone routers. Grinding or polishing on marble, granite, engineered stone, etc. All kind of shapes stone can be designed, such as, Eased, Half Bullnose, Bevel, Ogee, Normandy Bead, Cove, Stairtread, Full bullnose, Dupont, roman, roundover, etc.
Specification:
1. Outer diameter: 85mm
2. Height: 30mm (ohter size like 15mm, 20mm, 30mm, 40mm or as client's special request)
3. Usage: Wet profiling
4. Thread: M14 or 5/8"-11
5. Processing Technology: Vacuum brazed
6. Applications: Stone edging and profiling
7. Diamond grit: Coarse, Medium, Fine
8. Shape: Full Bullnose
9. Delivery time: Around 15days
| Product Name |
Vacuum Brazed Diamond Profile Grinding Wheel Router Bits |
| Out Diameter |
85mm |
| Height |
30mm |
| Shape |
Full Bullnose |
| Connection |
M14 thread or 5/8"-11 thread |
