150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete

150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete
150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete 150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete 150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete 150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete

Large Image :  150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, MPA
Model Number: 150mm
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiate
Packaging Details: white or color carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/year

150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete

Description
Diameter: 150mm Segment Thickness: 2.2mm
Segment Height: 7/10/12mm Inner Hole: 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Highlight:

Diamond Cutting Blade

,

Laser Welded Diamond Blades

1. Description of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
150mm professional grade general purpose diamond blade for fast cutting on a various concrete, masonry and construction materials. They are designed for heavy saw cutters who want to cut different materials without having to change blade. These saw blades feature undercut protection for use on asphalt and green concrete. The Profession diamond Blade is a good choice for landscaping contractors, general contractors, utilities, municipalities, sewer and water departments and rental companies.


2. Feature of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
1. Well exported to America, European, Asia, Africa, Australia market.

2. Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.

3. Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.

4. Unercut protection segments provide longer lifetime.

5. 100% laser welding technology.



3. Specification of 150mm Diamond Universal Saw Blades for Cutting Stone, Concrete
Diameter:150mm
Segment thickness:2.2mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
6" 150 34 2.2 7 11
6" 150 34 2.2 10 11
6" 150 34 2.2 12 11


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
32" 800 40 5.0 10/12/15 46


4. Packing and Shipping

Each laser saw blade is packed in white box, then 50-75pcs put in an export standard carton, gross weight per carton is limited within 12-17kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

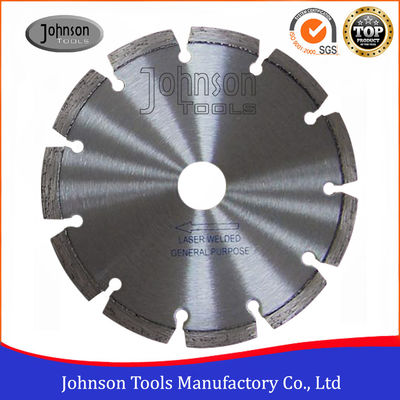

150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete 0

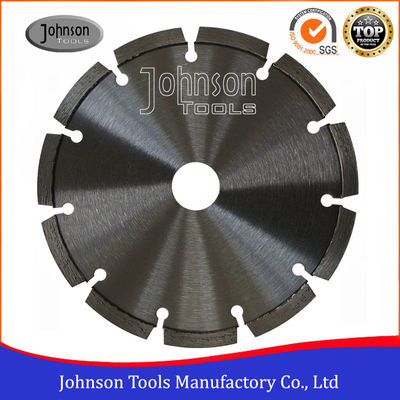

150mm Diamond Universal General Purpose Saw Blades For Cutting Stone , Concrete 1
