105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose

105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose
105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose 105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose 105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose

Large Image :  105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose

Product Details:
Place of Origin: China
Brand Name: Johnsontools
Certification: GB
Model Number: 7.1.4
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Price negotiable
Packaging Details: According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Delivery Time: If there are steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Piece/ per Month

105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose

Description
Size: 105mm HS Code: 8202391000
Segment Thickness: 1.8mm Market: Asia, Euro, USA, South Africa, Etc.
High Light:

Diamond Cutting Blade

,

Laser Welded Diamond Blades

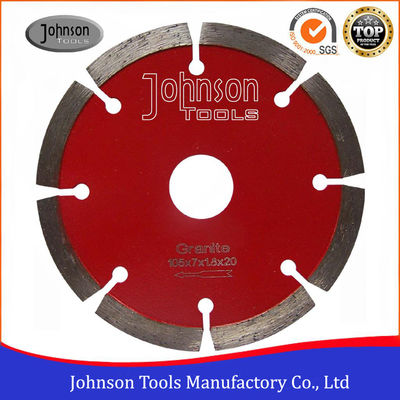

1. Description of 105mm Sintered Segment Saw Blade for General Purpose


105mm sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc. Fast cutting, good cutting life.


Application:
General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc.





2. Features of 105mm Sintered Segment Saw Blade for General Purpose


1. Sintered technology, segmented type with efficient cutting all range of materials.
2. Both Dry and Wet Use.
3. Maximizing the value with good performance.

4. Mature production technology: Cold-pressed or hot-pressed
5. Easy and smooth cutting
6. Long cutting life
7. Different grade to choose


Equipment: Angle Grinder, Masonry saw, Circular Saw, High Speed Power Saw.




3. Specification information of 105mm Sintered Segment Saw Blade for General Purpose



Specifications:
Outer Diameter: 105mm
Segment height: 7mm or 10mm
Segment thickness: 1.8mm
Teeth No.: 8nos
Center hole: 16mm or 20mm



Details Spec.:



Outside diameter Segment specification Hole Teeth No. Cutting material
Thickness Height
105mm 1.8mm 7mm 16/20 8nos General purpose
105mm 1.8mm 10mm 16/20 8nos General purpose



Other size we could do:

Item No. Inch mm Teeth number Segment Thickness Segment Height Inner hole
SGP-105 4 105 8nos 1.8 7/10 16/20
SGP -110 4.3 110 8nos 1.8 7/10 16/20
SGP -115 4.5 115 9nos 1.8 7/10 20/22.23
SGP -125 5 125 9nos 1.8 7/10 20/22.23
SGP -150 6 150 12nos 2 7/10 20/22.23
SGP -180 7 180 14nos 2 7/10 20/22.23
SGP -200 8 200 14nos 2.2 7/10 20/22.23
SGP -230 9 230 16nos 2.2 7/10 20/22.23
SGP -250 10 250 18nos 2.4 10 20/25.4
SGP -300 12 300 22nos 3 10 20/25.4
SGP -350 14 350 24nos 3.2 10 25.4



4. Packing and Shipping of 105mm Sintered Segment Saw Blade for General Purpose

Each saw blade is packed in white box or colored box packing, then according to the size, 10-100pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.



Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.



Delivery way: By air, by sea, by land, by courier, etc.







105mm Sintered Segment Saw Blade Diamond Cutting Blade For General Purpose 0



Special inquiy on above item products, pls let us know. thanks.
