Product Details:
|
| Type: | Diamond Blades | Welding: | Laser Welding |
|---|---|---|---|
| Power: | 3HP-85HP, Or As Your Request | Cutting Type: | Straight Cutting |
| Slot Type: | Slat U | Thickness: | 4.8/5mm |
| Highlight: | concrete wall cutting saw,diamond concrete cutting blades |
||

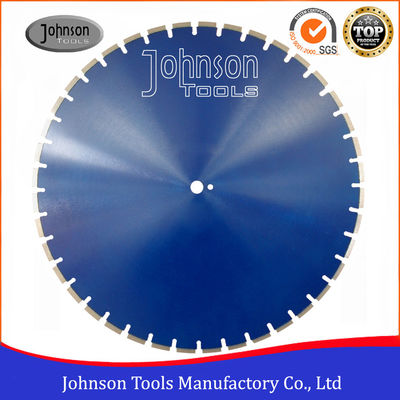

700mm Wall Saw Cutting Diamond Blade with Sharp Segment for Wall Cutting
1. Description of 700mm Wall Saw Cutting Diamond Blade with Sharp Segment for Wall Cutting
1400mm wall saw blade is exported more for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrerte bridges etc.
As a direct factory, any size could be customized and designed as your request.
2. Feature of 700mm Wall Saw Cutting Diamond Blade with Sharp Segment for Wall Cutting
1) 100% laser welding technology.
2) Dry cutting.
3) "Single U" type segment good for cooling.
4) High speed&fast cutting, smooth and long cutting life.
5) Fit to 3HP-85HP, or do as your request.
6) Installed for any brand wall saw machine.
3. Specification of 700mm Wall Saw Cutting Diamond Blade with Sharp Segment for Wall Cutting
Diameter:700mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
Other size we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 30" | 760 | 40 | 4.8/5 | 10/12 | 46 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
| 72" | 1800 | 40 | 4.8/5 | 10/12 |
4. Packing and Shipping
5pcs 700mm wall saw blades are packed in one plywood, gross weight per plywood is limited within 55kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
