Product Details:
|
| Type: | Diamond Blades | Welding: | Laser Welding |
|---|---|---|---|
| Power: | 3HP-85HP, Or As Your Request | Cutting Type: | Straight Cutting |
| Slot Type: | Slat U | Thickness: | 4.8/5mm |
| Highlight: | diamond concrete cutting blades,concrete wall saw |
||

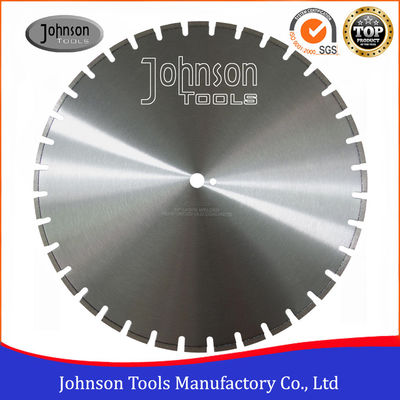

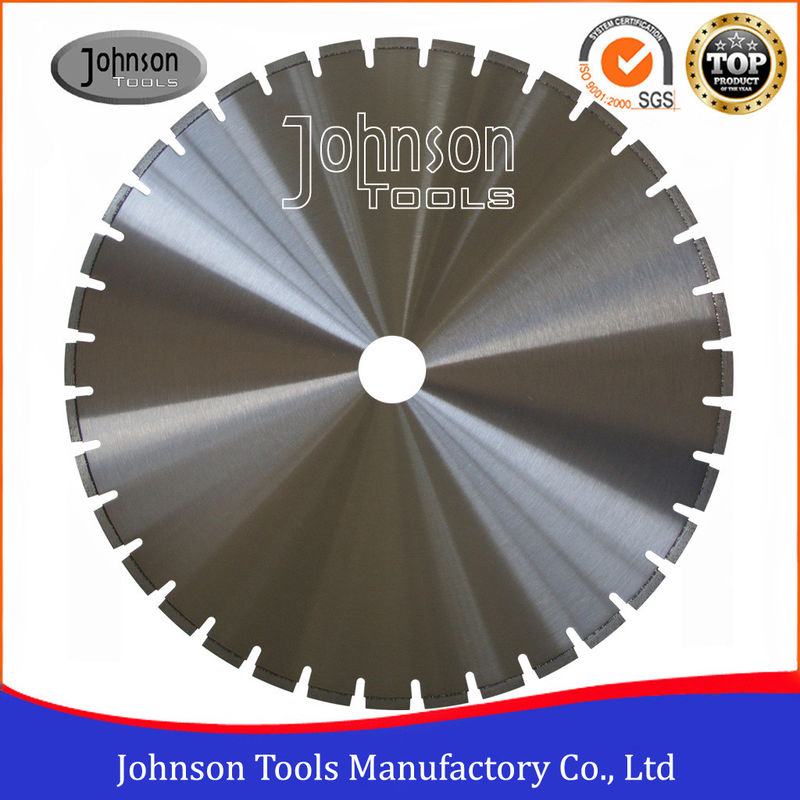

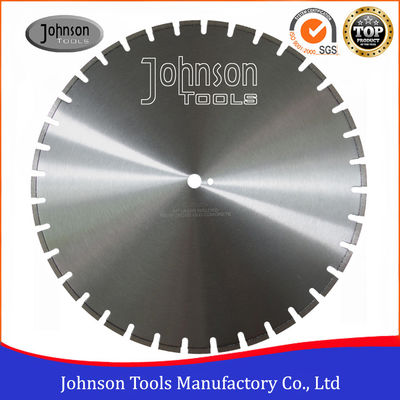

600mm Wall Saw Diamond Blade for Reinforced Concrete Cutting
1. Description of 600mm Laser Blades for Wall Saws, reinforced concrete saw blade
600mm wall saw blade is exported more for demolition reinforced concrete construction, including the partial modification and buildings and walls delimotion, opening window holes, doorways, demolition of reinforced concrerte bridges and so on.
2. Features of 600mm Laser Blades for Wall Saws, reinforced concrete saw blade
1) 100% laser welding technology.
2) Dry cutting.
3) Normal type segment make long cutting life..
4) High speed&fast cutting.
5) Fit to 3HP-85HP.
6) Installed for any brand wall saw machine.
.
3. Specification information of 600mm Laser Blades for Wall Saws, reinforced concrete saw blade
| Inch | Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
Other size we could do as following
| Inch | Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
4. Packing and shipping
Each blade is packed in white box or colored box, then 5pcs put in an export standard carton, gross weight per carton is 41kg, net weight per carton is 38kg. Volumn:63x63x10cm.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
5. Payment term
Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
