Product Details:
|
| Size: | 300mm | Application: | Cutting For Wood |
|---|---|---|---|
| HS Code: | 84669200 | Material: | With High Density Carbide Tips. |
| Performance: | High Precision, Smooth, High Effective. | Inner Hole: | 20mm, 22.23mm, 25.4mm |
| High Light: | Steel Cutting Disc,Metal Cutting Discs |
||

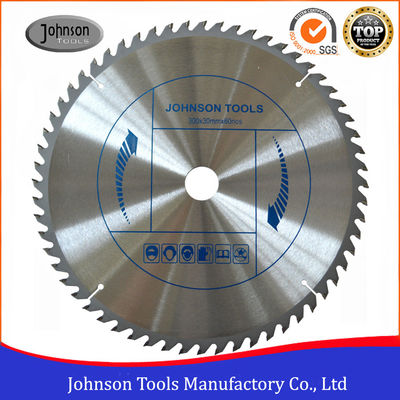

300mm Carbide Tipped Saw Blade, 12 Saw Blade, Wood Cutting Blade
The alternare top bevel(ATB) tooth allows a fine cutting and is used on blades for cutting wood.
Outer diameter: 300mm. Other special sizes could be made upon request.
Center hole: 20mm, 22.23mm, 25.4mm.
Application: For cross cutting softwood, hardwood, plywood, chipboard, multi-board panels, MDF, plated & counted -plated panel, laminate& bi-laminate, plastic , FRP, etc.. Providing a high degree of finishing edge.
Advantage: Automatic Brazing & Automatic Grinding Teeth
Details spec.:
| Diameter(mm) | Kerf (mm) | Teeth No. | Teeth Type |
| 300 | 3.2 | 24 | ATB |
| 300 | 3.2 | 36 | |
| 300 | 3.2 | 60 |
Other sizes could be made upon request.
How to use TCT blade?
The machine must be in good conditions, free of vibrations.
The flanges used to secure the blade must be of the same diameter, at least 1/3 of the blade’s diameter
the flanges must be parallel to each other. Also check tolerances on diameters, sides, and concentricity, by using a clock gauge
The spacers must be perfectly parallel.
The spindle must be perfectly straight and with an H7 tolerance
After continuous use, must be removed and cleaning the saw blade, get rid of the resin and sawdust of both sides
Deposit of the blade, must be put it into the original package.
