36" 900mm Diamond Wall Saw Blades For Heavy Reinforced Concrete / Bridge Deck
concrete wall cutting saw
,diamond concrete cutting blades

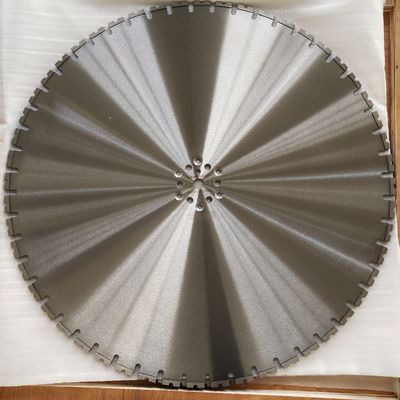

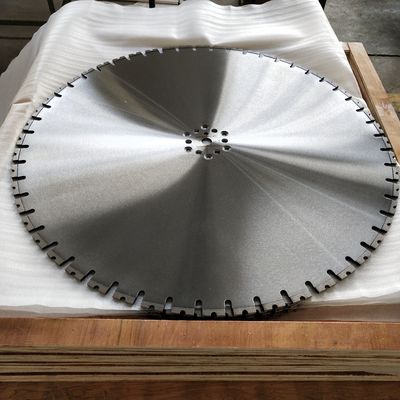

36" Diamond Blades for Concrete Walls , Heavy Reinforced Concrete , Bridge Deck
Description:
The 36" wall saw blade has become increasingly essential in the field of demolition construction. Its robust design allows for precise cutting in various applications, including the partial modification and dismantling of buildings and walls. This versatile tool is particularly effective for creating openings for window holes and doorways, ensuring clean and efficient cuts that minimize structural damage. Additionally, it plays a crucial role in the demolition of bridges and other large structures, where accuracy and power are paramount. With its ability to handle tough materials like reinforced concrete and masonry, the 36" wall saw blade is indispensable for contractors aiming to achieve both speed and precision in their projects, ultimately enhancing productivity and safety on the job site.
Feature
1. 100% laser welding technology.
2. "Single U" type segment ensure good cooling in fast cutting.
3. Fit to hydraulic or electric powered wall saw.
4. Any flush-cut bolt holes size available.
5. Dry or wet cutting.
6. Solve the difficulty of heavily reinforced concrete cuttings.
Specification
1. Diameter:900mm
2. Segment thickness:4.8/5mm
3. Segment height:10/12mm
4. Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 32" | 800 | 40 | 4.8/5 | 10 | 46 |
| 32" | 800 | 40 | 4.8/5 | 12 | 46 |
Other size we could do
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 62 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
Packing
1. 5pcs packed in one plywood, package size:100.5x100.5x6cm.
2. Net weight:17-18kg/pc.
3. Gross weight:105-108kg per plywood, around 350-400kg need to pack in one pallet.
About us
1. We're a direct manufacturer and 100% export diamond tools to worldwide( American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc)
2. Found in 2000 years.
3. Main product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
Our mission is to offer "High Quality" & "Good Service" & "Fast Delivery" to help our clients to gain more profits.
