Product Details:
|
| Type: | Diamond Saw Blades | Slot Type: | Straight Slot |
|---|---|---|---|
| Application: | Concrete Wall Saw, Reinforced Concrete Wall Saw. | Package: | White Box, Plywood |
| Net Weight: | 8.1-130kg | Cutting Type: | Wet Or Dry Cutting |
| High Light: | concrete wall cutting saw,concrete wall saw |
||

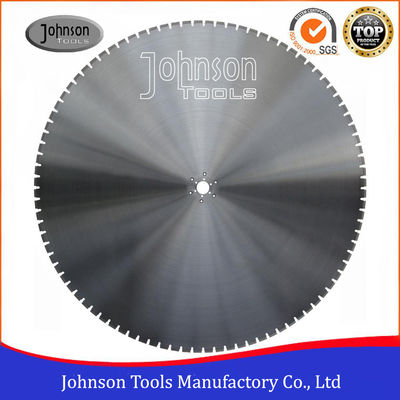

600-1800mm Laser Welded Diamond Blades for Wall Saws , Long Lifetime
Feature
1. 100% laser welding technology.
2. 100% segment inspection ensure no segment losing during fast cutting.
3. Fit to Hydraulic or electric powered wall saws.
4. Well exported to American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc.
5. Specially designed for opening in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition.
6. Smooth, fast cutting, long lifetime.
Specification:
1. Diameter:600-1800mm
2. Segment length:40mm
3. Segment thickness:4.8/5mm
4. Segment height:10/12mm
5. Inner hole:25.4mm, 50mm, 60mm, 80mm or others.
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48” | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56” | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60” | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64” | 1600 | 40 | 4.8/5 | 10/12 | 92 |
| 72" | 1800 | 40 | 4.8/5 | 10/12 | 106 |
Packing&Shipping
1. 600-1000mm diamond saw blade, 5pcs packed in one plywood. 1200-1800mm saw blade, 2-3pcs packed in one plywood.
2. Less than 45kg, suggest to send by express, More than 45kg, less than 100kg, suggest to send by air, more than 100kg, suggest to send by sea.
About us
1. We're a direct manufacturer and 100% export diamond tools to worldwide( American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc)
2. Found in 2000 years.
3. Main product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
