Product Details:
|
| Type: | Wall Saw Blades | Slot Type: | Slant U Slot |
|---|---|---|---|
| Application: | Concrete And Reinforced Concrete Wall Cutting | Thickness: | 4.8/5mm |
| Power: | Different Formula For 3HP-85HP Cutting Machine | Packing: | 5pcs Per Plywood/carton |
| HS Code: | 82023910 | ||
| High Light: | diamond concrete cutting blades,concrete wall saw |
||

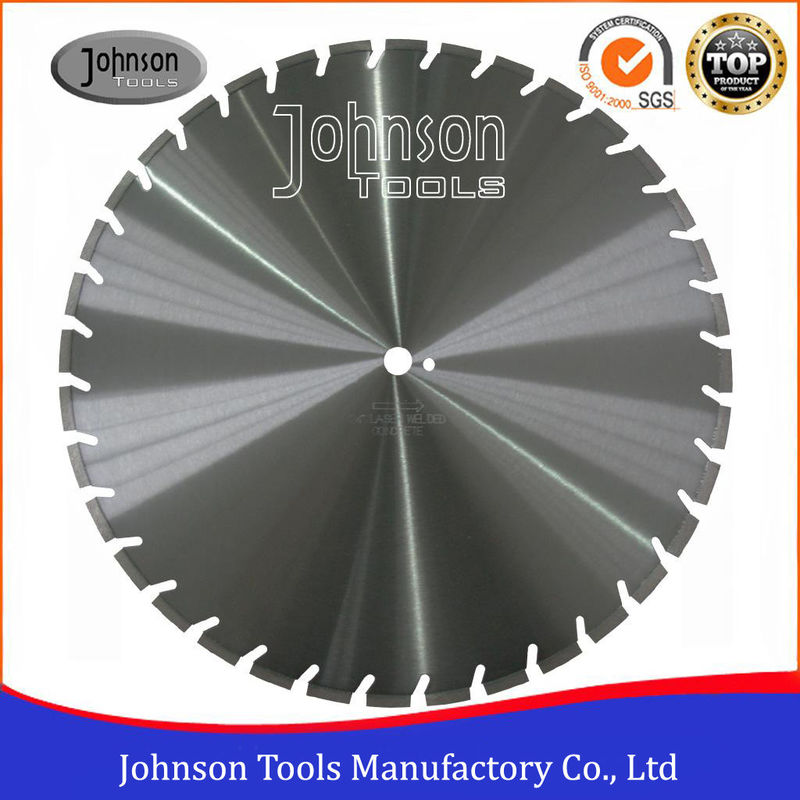

600-1600mm Laser Welded Wall Saw Blades , Diamond Blade for Concrete Wall Cutting
As a direct factory, we could provide 600-1600mm 100% laser welded wall saw blade, if you need biger size, we could do as your request. Suit to Hydraulic or electric power wall saw.
Suit for openning concrete walls for replacement of doors, windows, duets. Especially on removing walls and floors for expansion or demolition, instead of traditional blasting demolition.
Well exported to American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc.
Specification:
1. Diameter:600-1600mm
2. Segment thickness:4.8/5mm
3. Segment height:10/12mm
4. Inner hole size:25.4mm, 50mm, 60mm, 80mm or as your request.
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48” | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56” | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60” | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64” | 1600 | 40 | 4.8/5 | 10/12 | 92 |
