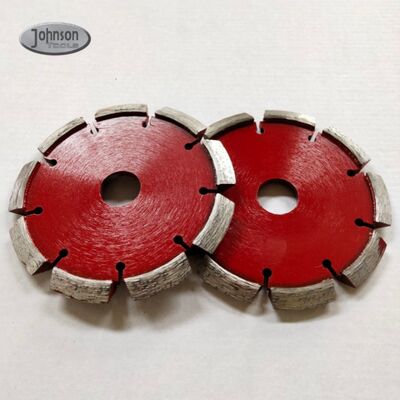

4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks

4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks
4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks

Large Image :  4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS,GB
Model Number: LTPC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: white box
Delivery Time: 7 – 15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month

4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks

Description
Processing Technology: Laser Welded Application: Asphalt,concrete,bricks
Arbor: 22.23 / 25.4mm Usage: Wet Use / Dry Use
Slot: Key Slot/ U Slot Color: Based On Your Request
HS Code: 8202391000
Highlight:

Crack Chasing Blade

,

Tuck Point Blade

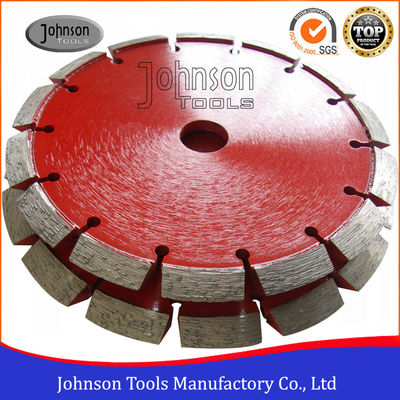

105mm to 230mm Crack Chaser Blade Crack Chaser Wheel, with Laser Welded Tuck Point

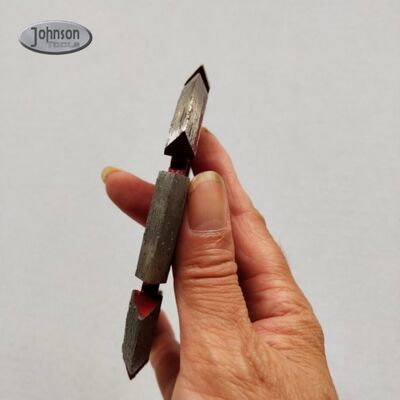

V-shape Crack Chaser Blade is designed to routing, cleaning cracks and joints in concrete, asphalt, marble, granite and other materials.



Outer diameter: 105mm to 230mm



Segment height: 7mm or 10mm or based on your request



Segment weld: Laser welded



Usages: Crack Chaser Blades are just what you need for repairing foundations, roads, and sidewalks



Wet/dry Cutting: Can be used for both dry and wet cutting



Advantage: Outstanding blade life and productivity



Machine: Angle grinder or circular saws



Details Specification:

Item number Diameter Inside hole diameter Rim thickness Rim height
inch mm
LTPC-105 4 105 22.23 mm 6.4mm 7/10 mm
LTPC-115 4 1/2 115 22.23 mm 6.4mm 7/10 mm
LTPC-125 5 125 22.23 mm 6.4mm 7/10 mm
LTPC-150 6 150 22.23 mm 6.4mm 7/10 mm
LTPC-180 7 180 22.23 mm 6.4mm 7/10 mm
LTPC-200 8 200 22.23 mm 6.4mm 7/10 mm
LTPC-230 9 230 22.23 mm 6.4mm 7/10 mm



4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 04'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 1

4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 24'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 3

4'' - 9'' Diamond Mortar Rake Disc For Asphalt / Concrete / Bricks 4
