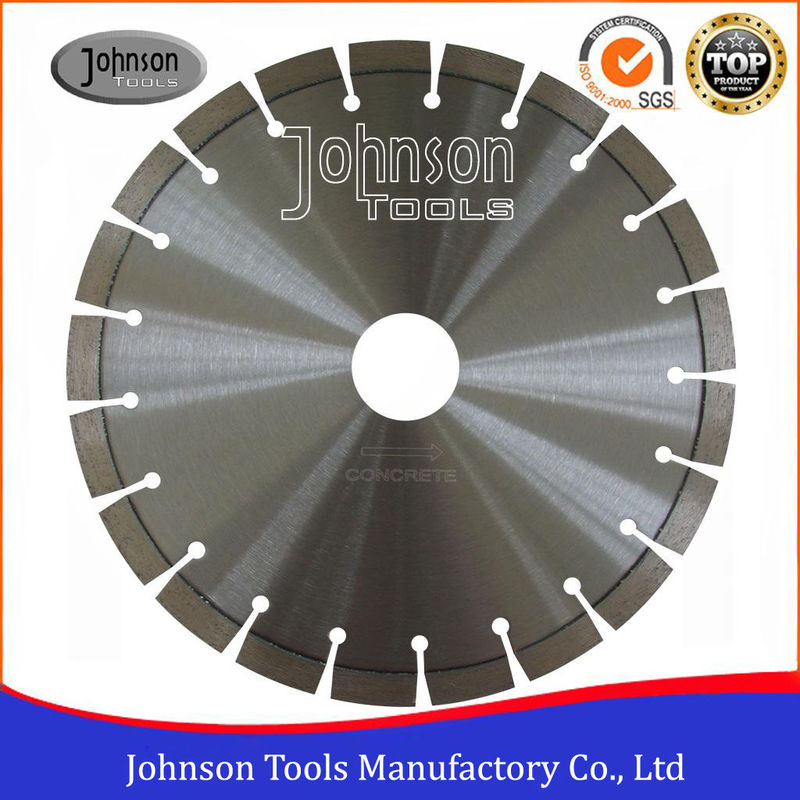

Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt

Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt
Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt

Large Image :  Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 450mm
Payment & Shipping Terms:
Minimum Order Quantity: 5-10pcs
Price: Negotiate
Packaging Details: White box, colored box
Delivery Time: Around 20-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per year

Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt

Description
Type: Diamond Blades Equipment: Power Saw, Walk Behind Saw
Application: Imporved Efficiency,cutting Life And Operator Safety Material: Diamond
Technology: Laser Welded Finishing: Painted & Polished
High Light:

450mm Asphalt Cutting Blades

,

450mm Diamond Concrete Cutting Blade

,

Asphalt Diamond Concrete Cutting Blade

450mm Cutter Diamond Concrete Cutting Blade And Asphalt Cutting Blade



1. Description of 450mm Wide U Slots Laser Welded Diamond Saw Blades for  Asphalt Cutting

1) Durable metal
2) Effective in asphalt cutting
3) Different sizes as requested
4) Competitive price and stable quality
5) Beautiful package and fast delivery
6) Excellent service



Technology Laser Welded
Segment Type Segmented
Dry or Wet Dry and wet
Certificates ISO, CE, SGS, UKAS, EN13236
Advantage Sharp cutting speed, long life, segments with high strength and feel stable when using.

Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt 0



2. Features of 450mm Wide U Slots Laser Welded Diamond Saw Blades for Asphalt Cutting

1. 100% Laser welding technology.
2. Undercut Protection segments provide enhanced lifetime when cutting Abrasive Materials.
3. Fits to Petrol Cutters, Bench & Floor Saw Machines.
4. Narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
5. Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
6. Well exported to Taiwan, Australia, Hongkong, Poland, Singapore, Thailand, USA etc.



3. Specification of 450mm Wide U Slots Laser Welded Diamond Saw Blades for Asphalt Cutting

Diameter: 450mm
Segment thickness: 3.6mm
Segment height: 10/12/15mm
Segment number: 32nos
Inner hole: 25.4mm or as your request
Cutting Material: Asphalt
Manufacturing time: Around 7-30days
MOQ: 10pcs


Diameter Segment Thickness Segment Height Hole
450mm 3.6mm 10/12/15mm 25.4mm


Other size we could do:

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 10/12/15 8
4.5" 115 31 2.2 10/12/15 9
5" 125 31 2.2 10/12/15 10
6" 150 34 2.2 10/12/15 11
7" 180 34 2.4 10/12/15 14
8" 200 40 2.4 10/12/15 13
9" 230 37 2.6 10/12/15 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42



4. Packing and Shipping of 450mm Wide U Slots Laser Welded Diamond Saw Blades for Asphalt Cutting

Each Laser welded saw blades are packed in white box, large quantity we could do plastic box or colour box, usually 10pieces per carton.
Shipping date: If we have steel body in our stock, normally shipment will be around 15days. If not, usually around 30 days
Delivery way: By sea, by air, by courier, by track, etc.

Laser Welded 450mm Diamond Concrete Cutting Blade For Asphalt 1
