Product Details:
|
| Type: | Diamond Blade | Shape: | Circular Saw Blade |
|---|---|---|---|
| Inner Hole: | 25.4/50/60 Or Do As Your Request | Max Cutting Speed: | 105-500mm Depended On Diameter |
| Slot Type: | Wide U Slot | Process Type: | Cold Press And Hot Press |
| High Light: | Sandstone Cutting Diamond Saw Blade,Circular Diamond Saw Blade,Concrete Asphalt Cutter Blades |
||

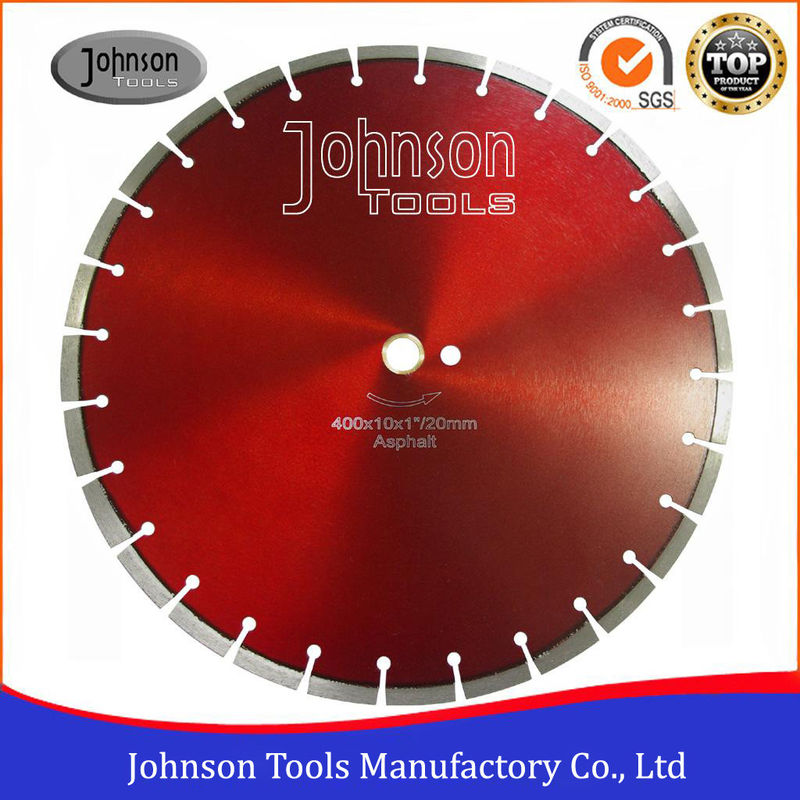

Sandstone Cutting Diamond Saw Blade Concrete Asphalt Cutter Blades
1) Special Design for different customer demand.
2) Dry and Wet Cutting are Both OK!
3) Diamond Cutting Blade for Granite. Fast cutting, Long life, High universality.
4) Both Standard Core and Reinforced Core are available.
5) Recommended to be used on Power Manual Saw Machine
Specification
| Inch |
Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 18 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 21 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 26 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 30 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 36 |
Packing
1. 300-400mm, 10pcs packed in one carton. 450-600mm, 5pcs packed in one carton.
2. Around 400kg, packed in one pallet.
Project:
Clients use our 400mm laser welded saw blade for green concrete cutting, FS6800, 68HP disel, cutting depth 11cm, with1-1/2" steel bar. Fast cutting and good cutting life.
