800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete
800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete

Large Image :  800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB,MPA
Model Number: 800mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD165~180 PCS
Packaging Details: Plywood or carton
Delivery Time: Around 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per year

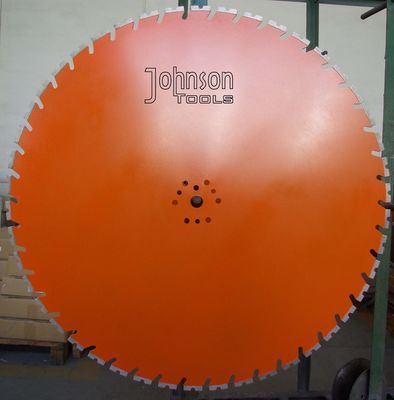

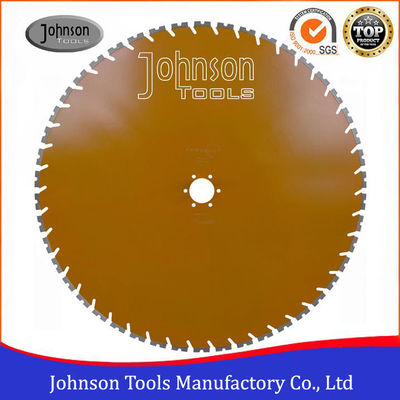

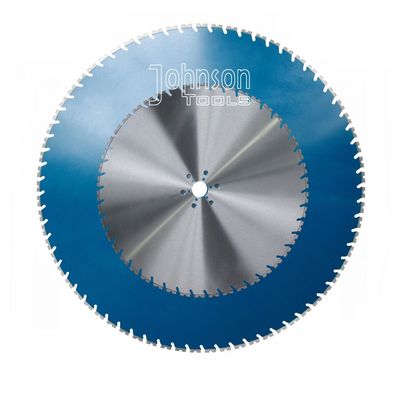

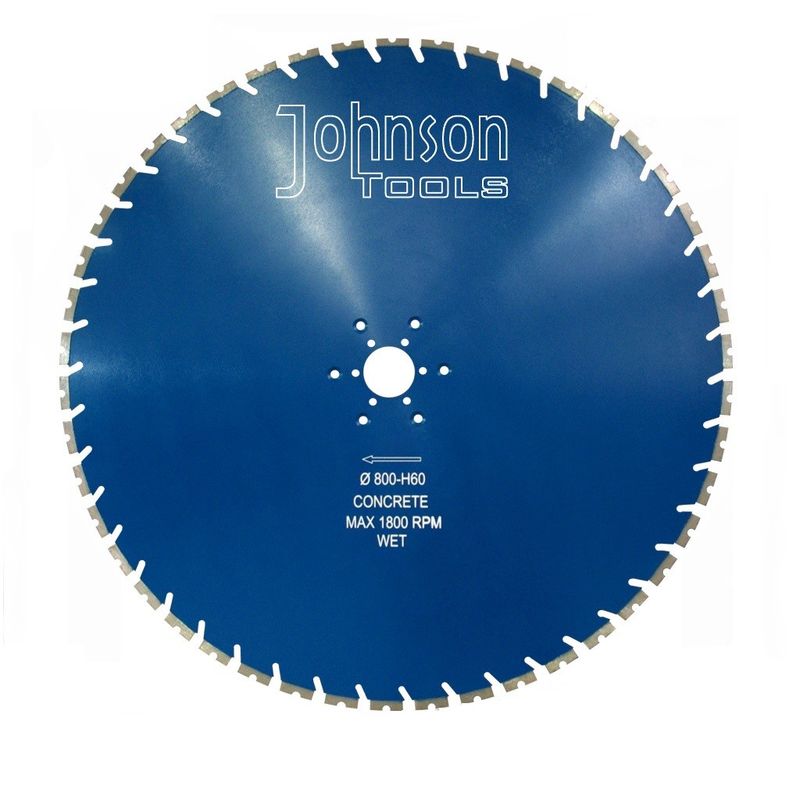

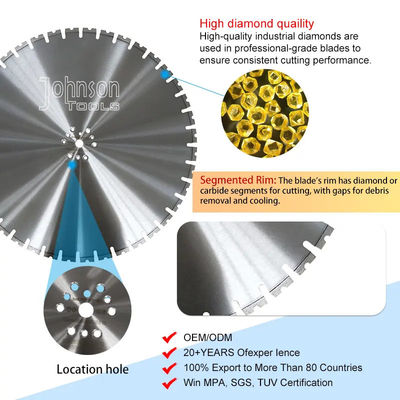

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete

Description
Product Name: 800mm Diamond Laser Wall Saw Blade For Cutting Concrete,Reinforced Concrete Welding: Laser Welding
Power: 3HP-85HP, Or As Your Request Cutting Type: Straight Cutting
Slot Type: Slat U Segment Size: 40x4.8/5x10/12mm
Highlight:

800mm Diamond Wall Saw Blades

,

40x4.8 Diamond Wall Saw Blades

,

5x10 Diamond Wall Saw Blades

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete

1.Description:


The wall saw blade has seen a significant increase in exports, particularly for its critical role in the demolition of reinforced concrete structures. This powerful tool is designed for a variety of applications, including the precise partial modification of buildings and the efficient dismantling of walls. It excels in creating openings for window holes and doorways, allowing for seamless renovations and structural adjustments. Additionally, the wall saw blade is indispensable in the demolition of reinforced concrete bridges and similar large-scale projects, where its ability to cut through tough materials ensures effective and safe operations. Its advanced engineering and versatility make it a preferred choice among contractors, facilitating smoother workflows and enhancing project outcomes in the ever-evolving landscape of construction and demolition.

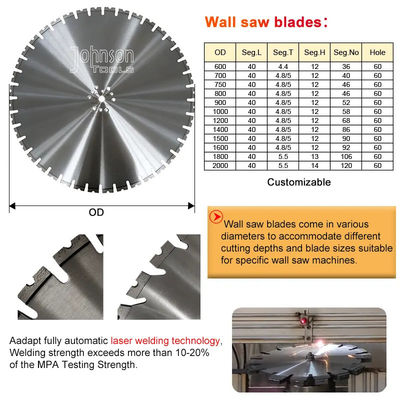

2.Specification:



Diameter: 800mm
Segment thickness: 4.8/5mm
Segment height: 10/12mm
Inner hole: 25.4mm, 50mm, 60mm, 80mm or as your request



Inch Diameter
(mm)
Segment length
(mm)
Segment thickness
(mm)
Segment height
(mm)
Segment number
(nos)
Inner Hole
(mm)
24" 600 40 4.4 12 36 60
28" 700 40 4.8/5 12 40 60
32" 800 40 4.8/5 12 46 60
36" 900 40 4.8/5 12 52 60
40" 1000 40 4.8/5 12 58 60
48" 1200 40 4.8/5 12 68 60
56" 1400 40 4.8/5 12 86 60
60" 1500 40 4.8/5 12 90 60
64" 1600 40 4.8/5 12 92 60
70" 1800 40 5.5 13 106 60
78" 2000 40 5.5 14 120 60




3.Application:



The laser welded wall saw blade is compatible with various machines, including electric tracking machines and air or hydraulic saws, requiring power from 10HP to 60HP. It is suitable for a diverse range of projects, such as civil engineering, structural steel work, waterproofing, and architectural renovation. The blade is available in outer diameters from 600mm to 2000mm, and delivery time typically ranges from 20 to 30 days, depending on the order quantity.




 800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 0

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 1

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 2

800mm Diamond Wall Saw Blades For Cutting Reinforced Concrete 3
