350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel

350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel
350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel 350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel

Large Image :  350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: Half bullnose edge profile wheel
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: White or colored pacakge.
Delivery Time: 15 - 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month

350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel

Description
Diameter: 140 - 400mm Hole: 30mm, 50mm, 60mm.
Thickness: 10 - 50mm Processing Technology: Sintered Type.
Shape: Half Bullnose Edge Application: For Shaping The Edge Or Curve Line For Various Granite And Marble
Usage: Various Granite , Marble, Engineered Stone. Grit: Coarse,medium,fine
High Light:

diamond saw blade for cutting granite

,

diamond saw blades for concrete

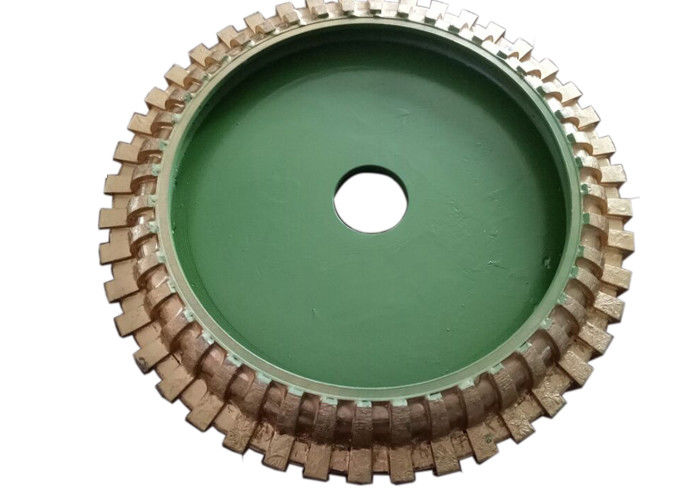

Metal bond segment type, 350mm Diamond Profile Tool for Shaping Granite and Marble



These sintered diamond stone edge profiling wheel can be used for shaping the edge or curve line for various granite and marble on router grinding machines.

The features of segment diamond wheel is long life. Its often be used as the first step for processing hard stone (such as granite) profiling.


All kind of shapes stone can be designed, such as, Eased, Half Bullnose, Bevel, Ogee, Normandy Bead, Cove, Stairtread, Full bullnose, Dupont, etc.



Product Introduction.



Dia. Height Inner hole Grit
140 10/15/20/30/50 30/50/60 Coarse/Medium/Fine
200 10/15/20/30/50 30/50/60 Coarse/Medium/Fine
300 10/15/20/30/50 30/50/60 Coarse/Medium/Fine
350 10/15/20/30/50 30/50/60 Coarse/Medium/Fine
400 10/15/20/30/50 30/50/60 Coarse/Medium/Fine



Other type of profile wheels for your reference.



Main market: Middle Asia, America, Europe, Oceania



350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel 0





Which shapes are you looking for, you can choose from following drawing or give us your drawing, then we will give you best offer.

350mm Metal Bond Segment Profiling Wheel , Sintered Edge Grinding Wheel 1
