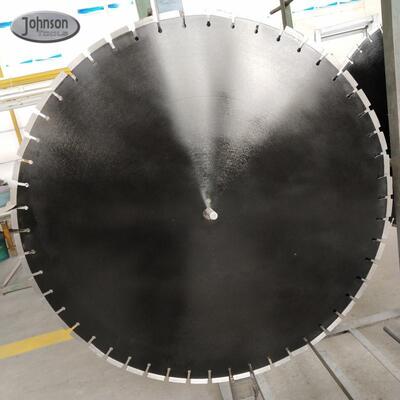

SGS OD1500mm Diamond Saw Blades For Fast Cutting Concrete And Asphalt
1. Description of 1500mm Diamond Road Cutting Road Cutting Blade for Concrete and Asphalt Cutting
1500mm Road cutting blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
2. Features of 1500mm Diamond Road Cutting Road Cutting Blade for Concrete and Asphalt Cutting
1. 100% Laser welding technology.
2. Undercut Protection segments provide enhanced lifetime when cutting Abrasive Materials.
3. Fits to Petrol Cutters, Bench & Floor Saw Machines.
4. Narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
5. Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
6. Well exported to Taiwan, Australia, Hongkong, Poland, Singapore, Thailand, USA etc.
3. Specification of 1500mm Diamond Road Cutting Road Cutting Blade for Concrete and Asphalt Cutting
Diameter:1500mm
Segment thickness:4.8/5mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch |
Diameter
(mm) |
Segment length
(mm) |
Segment thickness
(mm) |
Segment height
(mm) |
Segment number
(nos) |
| 60" |
1500 |
40 |
4.8/5 |
10 |
90 |
| 60" |
1500 |
40 |
4.8/5 |
12 |
90 |
| OD (mm) |
Teeth specification |
Hole(mm) |
| Length (mm) |
Thickness (mm) |
Height (mm) |
Number |
| 350 |
40 |
3.2 |
10/12/15 |
24 |
25.4 |
| 400 |
40 |
3.4 |
10/12/15 |
28 |
25.4 |
| 500 |
40 |
4.0 |
10/12/15 |
36 |
25.4 |
| 600 |
40 |
4.4 |
10/12/15 |
42 |
25.4 |
| 650 |
40 |
4.8/5.0 |
10/12/15 |
42 |
25.4 |
| 750 |
40 |
4.8/5.0 |
10/12/15 |
46 |
25.4 |
| 800 |
40 |
4.8/5.0 |
10/12/15 |
46 |
25.4 |
| 900 |
40 |
4.8/5.0 |
10/12/15 |
52 |
25.4 |
| 1200 |
40 |
4.8/5.0 |
10/12/15 |
68 |
25.4 |
| 1500 |
40 |
4.8/5.0 |
10/12/15 |
90 |
25.4 |
4. Packing and Shipping of 1500mm Diamond Road Cutting Road Cutting Blade for Concrete and Asphalt Cutting
2pcs 1500mm laser welded wall saw blades are packed in one plywood, gross weight per plywood is limited within 170kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
