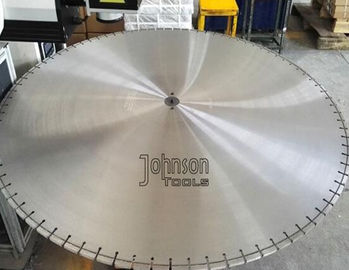

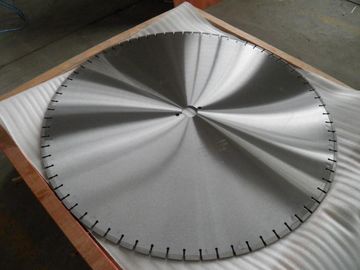

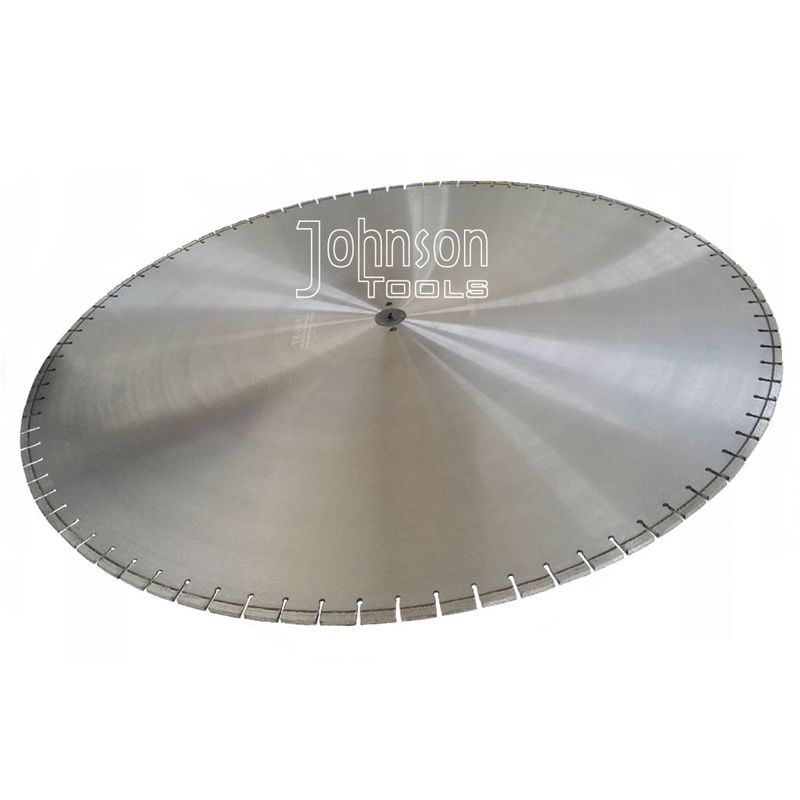

1300mm Laser Welded Diamond Blades for Cutting Prestressed Concrete
Features
1. For cutting prestressed concrete elements , such as Hollow core concrete slabs for floors and walls , inverted T-beams , hollow core beds , etc . which used in the construction industry.
2. With good sharpness and long cutting life.
3. Suitable for Prestressed Concrete Pile Machine—Bridge Crane , Prestressed concrete cutting machine.
4. Well exported to South africa , Bahrain , Vietnam , Egypt , UK , Thailand , Italy , Iran market.
Specification
1. Diameter 1300mm
2. Steel discs thickness 6mm

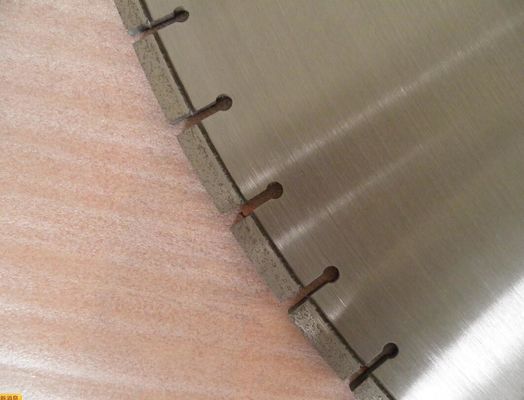

3. Segment thickness 8mm
4. Segment height 12mm
5. Inner hole 50mm , 60mm or 80mm as your request
| Inch |
Diameter
(mm)
|
Teeth length
(mm)
|
Teeth thickness
(mm)
|
Teeth height
(mm)
|
Teeth number
(nos)
|
| 51" |
1300 |
40 |
8 |
12 |
88 |

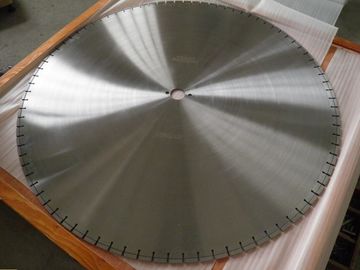

Packing
5pcs packed in one plywood . Package size 142x142x6cm.
About us
1. Direct manufacturer and 100% export to worldwide ( Thailand , India , Malaysia , Jordan , South Africa , Kenya , Morocco , Australia , UK , Spain , Brazil , etc )
2. Found in 2000 year.
3. Main products are laser welded saw blade , sintered saw blade , diamond segments , diamond polishing and grinding products , cup wheel , core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
View More-Cutting scene
