Product Details:
|
| Outer Diameter: | 400mm | Center Hole: | 25.4mm, 50mm As Your Request |
|---|---|---|---|
| Segment Thickness: | 3.4mm | Segment Height: | 10/12/15mm |
| Cutting: | Dry Cutting Reinforced Concrete | ||
| High Light: | concrete circular saw blade,circular saw concrete blade |
||
400mm Laser Diamond Concrete Saw Blades for Dry Cutting Reinforced Concrete
1. Description of 400mm Laser Diamond Cutting Saw Blades for Dry Cutting Reinforced Concrete
Our company, johnson tools manufactroy co.,td is a professional diamond tool manufacturer, with years of experience:
1. Laser saw blade is our main product, has been well exported to UK, India, Vietnam, Yemen, and so on, outer diameter of laser diamond saw blade is from 105 to 1800mm. Customer feedback good. Factory has laser machine, mature laser welding technology. Our laser saw blades have dropped segments for a better and faster cut.
2. Special transportation way, costs cheap, export Europe, USA, Canada, Croatia, Thailand etc. For example, ship to Uk, 14kg total needs 85usd, delivery time is about 5days.
3. We can provide custom packaging or tags as you require.
2. Specification information of 400mm Laser Diamond Cutting Saw Blades for Dry Cutting Reinforced Concrete
1) Fast speed, high efficiency for cutting reinforced concrete structure.
2) The kerf is very smooth and flat, surface is very pretty.
3) Concrete cutting is no vibration, have no influence for previous structure.
4) Reinforced concrete cutting is no dust, low noise, it is a good environment.
5) Well precision construction.
3. Feature of 400mm Laser Diamond Cutting Saw Blades for Dry Cutting Reinforced Concrete
Diameter:400mm
Segment thickness:3.4mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 16" | 400 | 40 | 3.4 | 10 | 28 |
| 16" | 400 | 40 | 3.4 | 12 | 28 |
| 16" | 400 | 40 | 3.4 | 15 | 28 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |

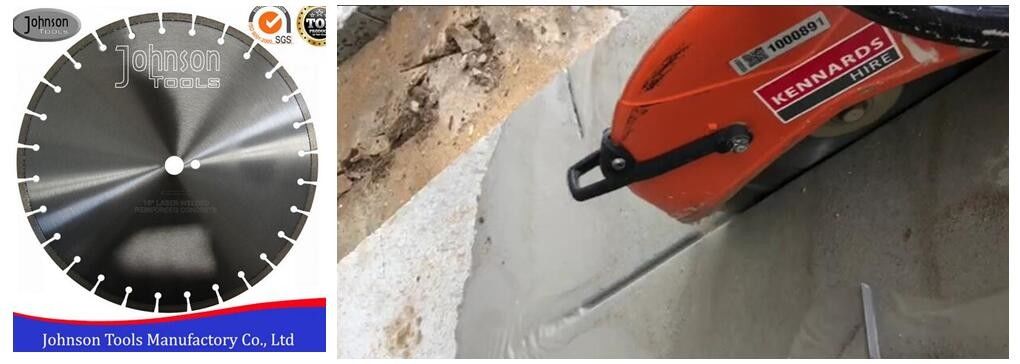

Testing picture and feedback well:
4. Packing and Shipping
Each 16" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 30kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc
