9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes

9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes
9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes

Large Image :  9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 230mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 15-35days
Payment Terms: Western Union, L/C, T/T,PayPal
Supply Ability: 1000pcs per month

9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes

Description
Outer Diameter: 230mm Center Hole: 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Segment Thickness: 2.6mm Segment Height: 7/10/12mm
High Light:

concrete diamond blade

,

concrete circular saw blade



1. Description of 230mm Diamond Saw Blade with Cooling holes for Reinforced Concrete Cutting

9" Laser welded Diamond Blade designed for angle grinder. Wet or dry cutting for reinforced concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.



2. Specification information of 230mm Diamond Saw Blade with Cooling holes for Reinforced Concrete Cutting





Diameter:230mm
Segment thickness:2.6mm
Segment height:7/10/12mm
Inner hole:16/20mm, 22.23mm, 25.4mm, 50mm or as your request



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
9" 230 37 2.6 7 16
9" 230 37 2.6 10 16
9" 230 37 2.6 12 16


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40

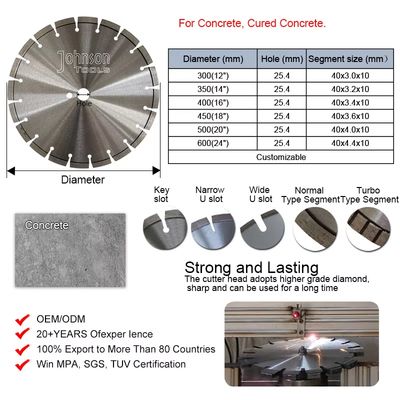

For reference, the following picture has been well exported to  Europe, America:



9" Laser welded Diamond Concrete Saw Blades 230mm with Cooling Holes 0





3.Feature of 230mm Diamond Saw Blade with Cooling holes for Reinforced Concrete Cutting



1) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.


2) High precision and speed for cutting reinforced concrete





4. Packing and Shipping



Each 9" laser saw blade is packed in white box, then 25pcs put in an export standard carton, gross weight per carton is limited within 17-20kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
