Product Details:
|
| Outer Diameter: | 750mm | Center Hole: | 25.4mm, 50mm As Your Request |
|---|---|---|---|
| Segment Thickness: | 5mm | Segment Height: | 10/12/15mm |
| Other Size: | 4"/4.5"/5"/6"/7"/8"/9"/10"/12"/14"/16"/18"/20"/24"/26"/28"/30" | ||
| High Light: | concrete diamond blade,circular saw concrete blade |
||

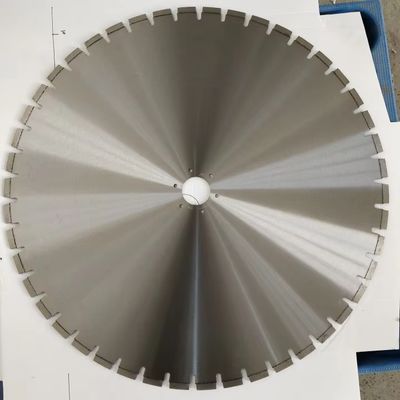

1. Description of 750mm Diamond Saw Blade with High Efficiency for Cured Concrete Cutting
750mm diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting cured concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.
Well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.
2. Specification information of 750mm Diamond Saw Blade with High Efficiency for Cured Concrete Cutting
Diameter:750mm
Segment thickness:5.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness |
Teeth height (mm) |
Teeth number (nos) |
| 30" | 750 | 40 | 5.0 | 10 | 46 |
| 30" | 750 | 40 | 5.0 | 12 | 46 |
| 30" | 750 | 40 | 5.0 | 15 | 46 |

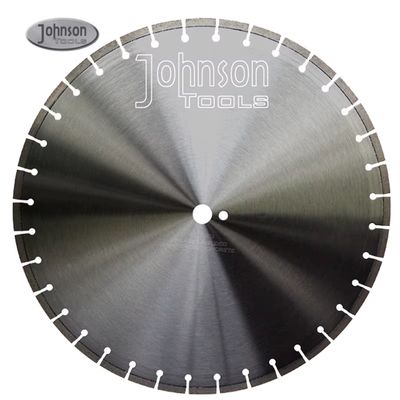

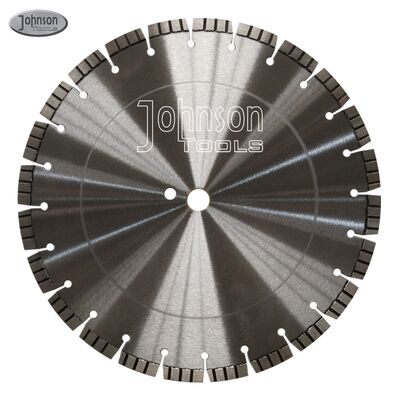

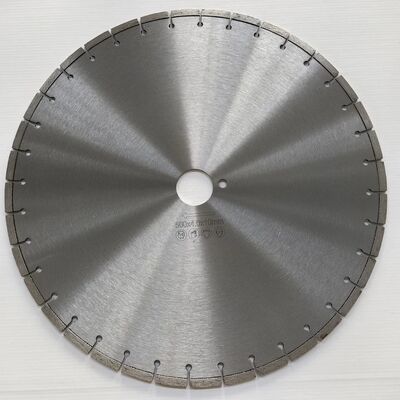

Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
3.Products advantages
1.The steel disc is purchased from one of the best base manufacturers in China. Segment is produced by our own factory, which has mature laser welding technology.
2.Quality control for each product, such as the segment welding strength, hardness, packing way and marking style.
3. Accept sample order to have a test.
4. Packing and Shipping
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
The outer diameter more than 600mm, diamond saw blade packed in three ply wood.
Less than 600mm, packed in carton boxs.
