Product Details:
|
| Outer Diameter: | 400mm | Center Hole: | 25.4mm, 50mm As Your Request |
|---|---|---|---|
| Segment Thickness: | 3.4mm | Segment Height: | 10/12/15mm |
| Other Size: | 4'/5"/6"/7"/8"/9"/10"/14"/16"/18"/30" | ||
| High Light: | concrete circular saw blade,circular saw concrete blade |
||

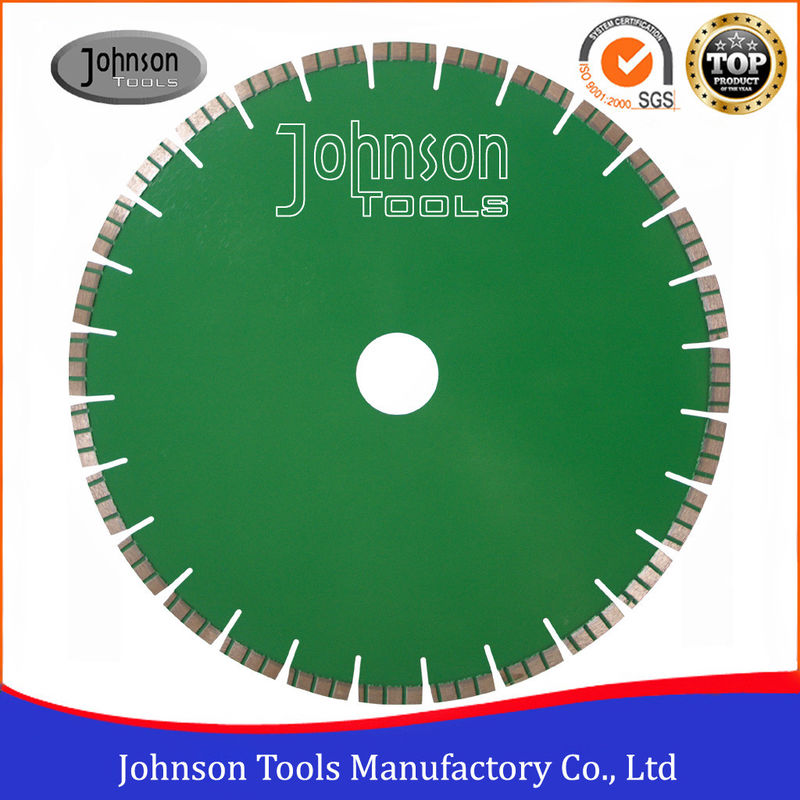

1. Description of 400mm Diamond Turbo Cured Concrete Cutting Blade with Long Lifetime
Diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.
At present, our 16" diamond concrete saw blades are well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.
2. Feature of 400mm Diamond Turbo Cured Concrete Cutting Blade with Long Lifetime
1) High precision and speed for cutting Cured concrete
2) Cutting cured concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.

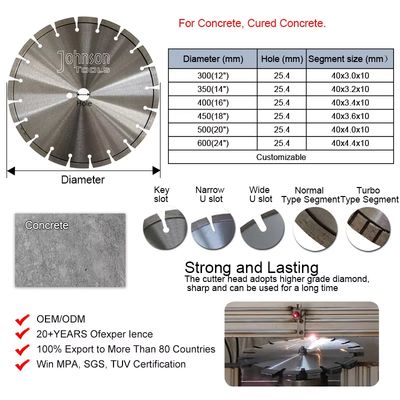

3. Specification information of 400mm Diamond Turbo Cured Concrete Cutting Blade with Long Lifetime
Diameter:400mm
Segment thickness:3.4mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 16" | 400 | 40 | 3.4 | 10 | 28 |
| 16" | 400 | 40 | 3.4 | 12 | 28 |
| 16" | 400 | 40 | 3.4 | 15 | 28 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
| 30" | 750 | 40 | 5.0 | 10/12/15 | 46 |
4. Packing and Shipping
Each 16" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 30kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.

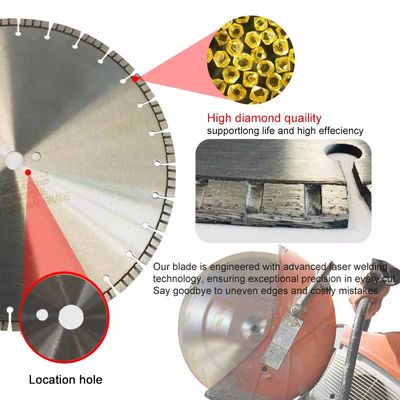

5. 400mm laser welded diamond saw blade with turbo segments.
