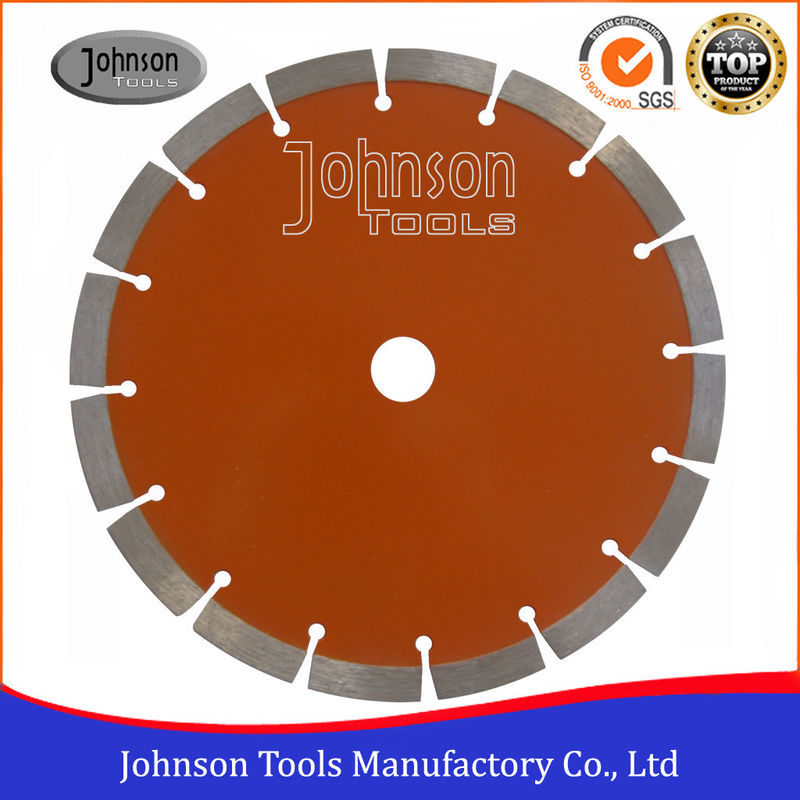

180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades

180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades
180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades 180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades 180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades 180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades

Large Image :  180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, MPA
Model Number: 180mm
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiate
Packaging Details: white or color carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/year

180mm Diameter Diamond General Purpose Saw Blades Laser Welded Diamond Blades

Description
Diameter: 180mm Segment Thickness: 2.4mm
Segment Height: 7/10/12mm Inner Hole: 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
High Light:

Diamond Cutting Blade

,

Laser Welded Diamond Blades

1. Description of 180mm Diamond General Purpose Saw Blades for Cutting stone, concrete

180mm professional grade general purpose diamond blade for fast cutting on a various concrete, masonry and construction materials. They are designed for heavy saw cutters who want to cut different materials without having to change blade. These saw blades feature undercut protection for use on asphalt and green concrete. The Profession diamond Blade is a good choice for landscaping contractors, general contractors, utilities, municipalities, sewer and water departments and rental companies.


2. Feature of 180mm Diamond General Purpose Saw Blades for Cutting stone, concrete

1. Well exported to America, European, Asia, Africa, Australia market.

2. Wet or dry cutting granite, marble, sandstone, masonry, concrete, reinforced concrete, asphalt, brick etc.

3. Suit to high Speed Hand Saws, Table Saws, Low HP Walk-Behind Saws.

4. Unercut protection segments provide longer lifetime.

5. 100% laser welding technology.



3. Specification of 180mm Diamond General Purpose Saw Blades for Cutting stone, concrete

Diameter:180mm
Segment thickness:2.4mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
7" 180 34 2.4 7 14
7" 180 34 2.4 10 14
7" 180 34 2.4 12 14


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
32" 800 40 5.0 10/12/15 46


4. Packing and Shipping

Each laser saw blade is packed in white box, then 50pcs put in an export standard carton, gross weight per carton is limited within 20kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
