M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain

M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain
M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain
M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain

Large Image :  M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain

Product Details:
Place of Origin: CHINA
Brand Name: JOHNSON TOOLS
Certification: GB, SGS
Model Number: VB100MM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15days.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month

M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain

Description
Products: Tile Diamond Core Drill Bits Set Technology: Vacuum Brazed
Use: Dry For Drilling Ceramic, Marble,granite, Etc Size: 35/40/55/68mm
Connection: M14 Thread Segemt Height: 15mm
Total Length: 100mm Feature: Fast Speed Drilling
Packing: Plastics Box
High Light:

M14 Vacuum Brazed core drill bit

,

Vacuum Brazed 35mm core drill bit

,

Vacuum Brazed 35mm diamond drill bits



4 Pcs Dry Use Vacuum Brazed Diamond Core Drill Bits Set for Porcelain





Diamond Core Drill Bits Specifications:

Product Name  Vacuum Brazed Diamond Core Drill Bits Set
Appilcation  Tile/Porcelain/Ceramic etc
Usage  Dry Use
Features 1. Vacuum Brazed Diamond Core Bits are very aggressive ideal for drilling ceramic and porcelain tiles along with granite, marble,and stone with super high precision while leaving smooth edges with minimal chipping.
2. Vacuum brazed technology is superior to electroplating in that the bits last much longer than electro-plated diamond bits.
3. They can typically drill more than 30 holes although life is dependent on type of material.
4. You can expect each bit to last dozens of holes drilling marble and similar stones.



Out Diameter Total Length Connection Teeth Height
35mm 100mm M14 or 5/8"-11Thread 15mm
40mm 100mm M14 or 5/8"-11Thread 15mm
55mm 100mm M14 or 5/8"-11Thread 15mm
68mm 100mm M14 or 5/8"-11Thread 15mm

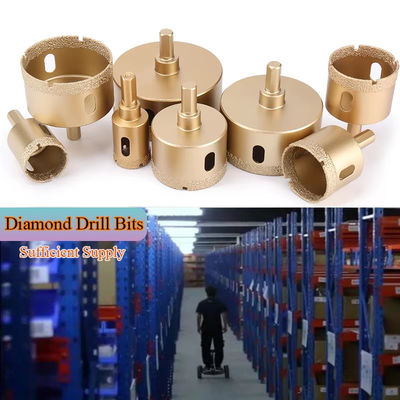

Product Display:



M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain 0



M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain 1



M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain 2



Other Bit Sets:


M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain 3

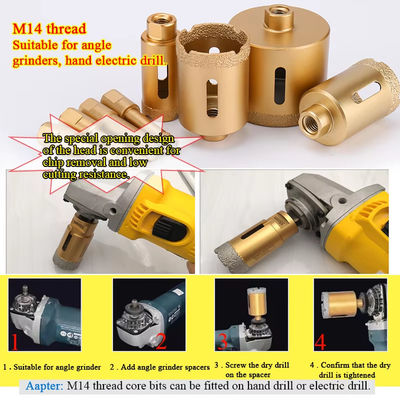

Product Application:

M14 Vacuum Brazed 35mm Diamond Core Drill Bits Set For Porcelain 4
