Product Details:
|
| Product Name: | Diamond Cutting Saw Blade | Manufacturing Process: | Sintered Hot Pressed |
|---|---|---|---|
| Outer Diameter: | 110-230mm | Segment Type: | Turbo Type |
| Center Hole: | 22.23mm Or As Your Request | Flange: | M14 Or 5/8"-11 |
| Application: | Cutting Granite | ||
| High Light: | diamond saw blade for cutting granite,diamond saw blades for stone |
||

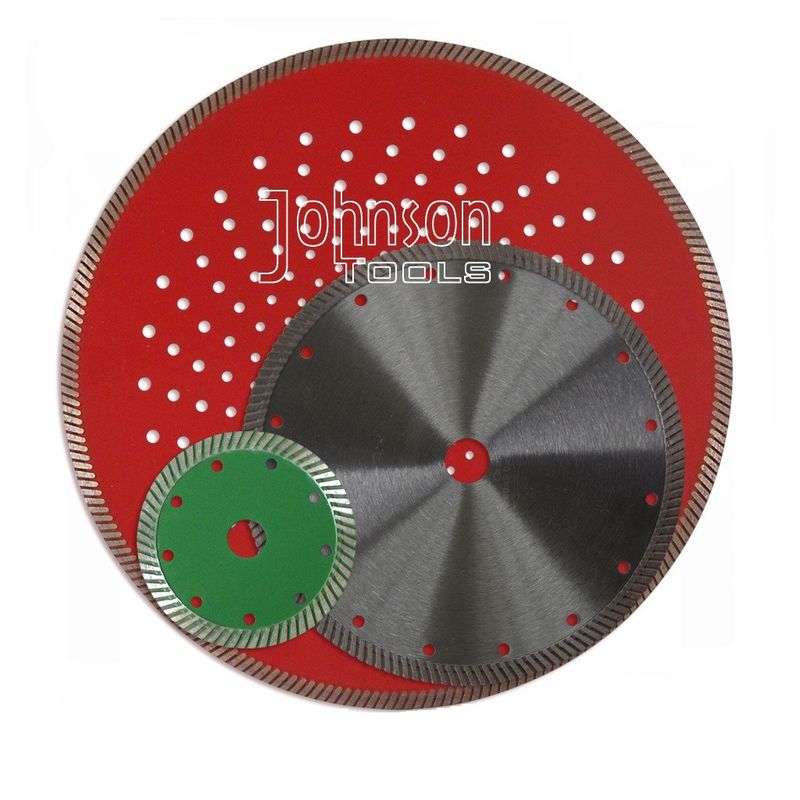

110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
1. Description of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
Diamond turbo saw blade using a special design, especially for high-speed rotating motor, high efficiency, cut smoothly, fast cooling, exhaust cut better, safe to use, can not afford the tip, ensure the safety of workers, able to withstand uninterrupted high-speed cutting, dry cutting, wet cutting available, add water cutting better.
2. Features of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
1. For cutting all kinds of stone, ceramics, concrete, brick and asphalt pavement, a wide range usage.
2. Continuous turbo teeth, easy chip removal, the tip with a solid, not easy for segment dropping.
3. Powder alloy hot pressing, long service life, and the better.
4. for a variety of angle grinders
Outer diameter from 110mm to 230mm. Segment height and center hole can be done based on client's request.
1) Specification is complete and varied.
2) Can do with Flange M14 or 5/8"-11.
3) Good balance assures excellent grinding effect
4) Long lifespan and stable performance
5) Competitive price and superior quality
6) Excellent service
Application:
Manual cutting machine, grinder; suitable for manual, pneumatic cutter, grinder and other handheld devices, professional wet cutting each hardness grade granite, marble and other stone, all kinds of ceramics, artificial stone, concrete and other building materials. Since the saw blade for small and medium size, it is easy to use, cutting a smooth deformation, flexible usage; it is one of the most commonly used cutting diamond series.
3. Specification information of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
Details specification:
| Item | Inch | Diameter | Seg. Thickness | Segment Height | Teeth number | Inner hole |
| ST-110 | 4" | 110 | 2 | 10 | 64 | 20/16 |
| ST-115 | 4.5" | 115 | 2 | 10 | 64 | 20/16 |
| ST-125 | 5" | 125 | 2.2 | 10 | 86 | 20/22.23 |
| ST-180 | 7" | 180 | 2.4 | 10 | 102 | 20/22.23 |
| ST-230 | 9" | 230 | 2.6 | 10 | 144 | 20/22.23 |
4. Packing and shipping of 110mm-230mm Hot Press Sintered Turbo Saw Blade Granite Cutting Blade
According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there are steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc
