Product Details:
|
| Technology: | Laser Welding | Machine Power: | Suit For 3HP-85HP, Or As Your Request |
|---|---|---|---|
| Application: | Electric Tracking Machine, Air Or Hydraulic Saws | HS Code: | 8202391000 |
| Segment Size: | 40x4.8/5x12mm | Transport Package: | Plywood Package |
| Outer Diameter: | 800mm | Cutting Material: | Diamond |
| Bore: | 60 | ||
| High Light: | diamond concrete cutting blades,concrete wall saw |
||

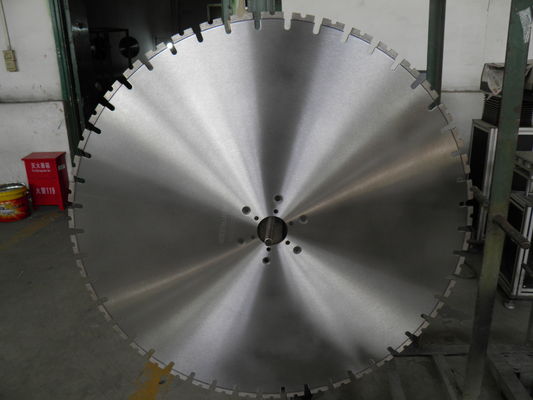

Laser Welded 800mm Diamond Wall Saw Blades for Cutting Reinforced Concrete
800mm wall saw blade is exported more for demolition constrcution, including the partial modification and delimotion buildings and walls, opening window holes, doorways, demolition of bridges etc.
Main market: Southeast Asia market, Middle East market, European market, America market
As a direct factory, any size could be customized and designed as your request.
Feature
1. 100% laser welding technology.
2. "Single U" type segment good for cooling.
3. Fit to 3HP-85HP, or do as your request.
4. High speed&fast cutting, smooth and long cutting life.
5. Dry or wet cutting.
6. Installed for any brand wall saw machine, such as Hilti, Husquarner, etc.
Specification
1. Diameter:32"/800mm
2. Segment thickness:4.8/5mm
3. Segment height:10/12mm
4. Inner hole:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 32" | 800 | 40 | 4.8/5 | 10/12 |
46 |
Other Specification of 600-1600mm Diamond Saw Blade for Cutting Reinforced Concrete
| Inch | Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |
Packing&Shipping
1. 5pcs packed in one plywood.
2. Less than 45kg, suggest to send by express, More than 45kg, less than 100kg, suggest to send by air, more than 100kg, suggest to send by sea.
Cerification
Sales team
Company info.
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China’s stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
