High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade

High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade
High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade
High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade

Large Image :  High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 200mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 20-35days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000pcs per month

High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade

Description
Outer Diameter: 200mm Center Hole: 16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Segment Thickness: 2.4mm Segment Height: 7/10/12mm
High Light:

concrete circular saw blade

,

circular saw concrete blade

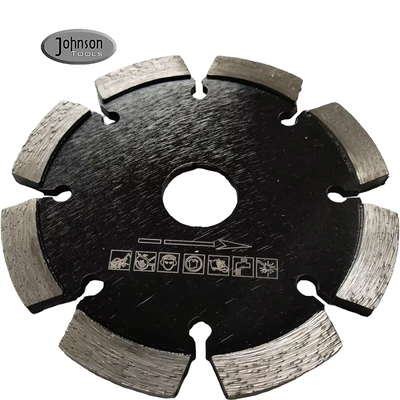

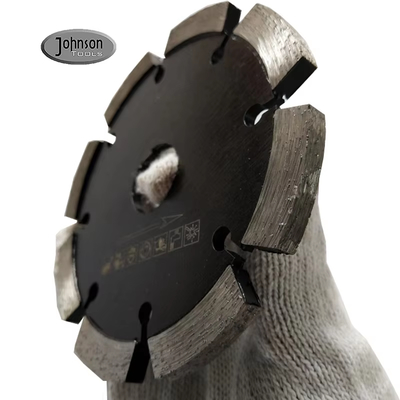

1. Description of 200mm Diamond Saw Blades for Fast Cutting Cured Concrete



8" Laser welded Diamond Blade designed for low and high horse power walk behind saws and high speed hand held saws.

Wet or dry cutting for no reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.

Undercut protection to prevent segment loss during cutting. Maximum cutting performance and longer life via tough wear-resistant segments.


High Speed Dry Diamond Saw Blades / 200mm Diamond Tile Cutting Blade 0

2. Feature of 200mm Diamond Saw Blades for Fast Cutting Cured Concrete



1) High precision and speed for cutting cured concrete
2) Widely used in various types of concrete structural, such as concrete, reinforced concrete, cured concrete, green concrete, brick concrete, concrete pipe.
3) Cutting cured concrete is not restrictedby the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.



3. Specification of 200mm Diamond Saw Blades for Fast Cutting Cured Concrete


Diameter:200mm
Segment thickness:2.4mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
8" 200 40 2.4 7/10/12 13


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46


4. Packing and Shipping



Each laser saw blade is packed in white box, then 50pcs put in an export standard carton, gross weight per carton is limited within 23kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 20-35days.

Delivery way: By air, by sea, by land, by courier, etc.
