|Place of Origin:||China|
|Brand Name:||Johnson Tools|
|Minimum Order Quantity:||50pcs|
|Packaging Details:||white box|
|Delivery Time:||7 - 25 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10000pcs per month|
|Place Of Origin::||Jiangsu, China (Mainland)||Usage::||Dry And Wet|
|Brand Name::||Johnsontools||Blade Type:||Segmented|
|Segment Material:||Diamond Crystals+ Metal Powder||Finishing::||According To Your Requirment|

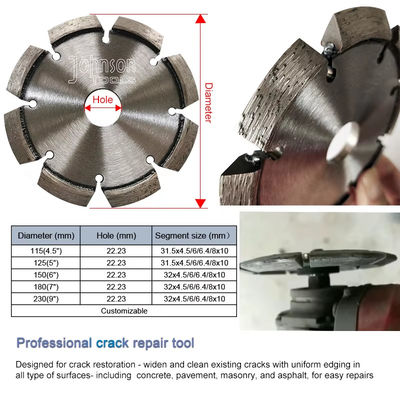

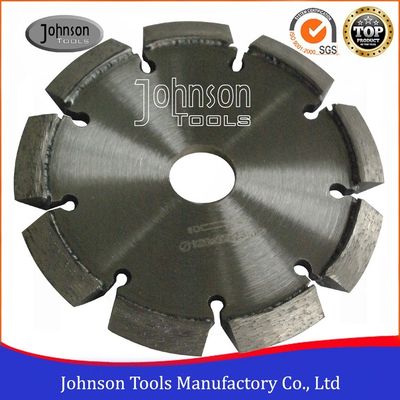

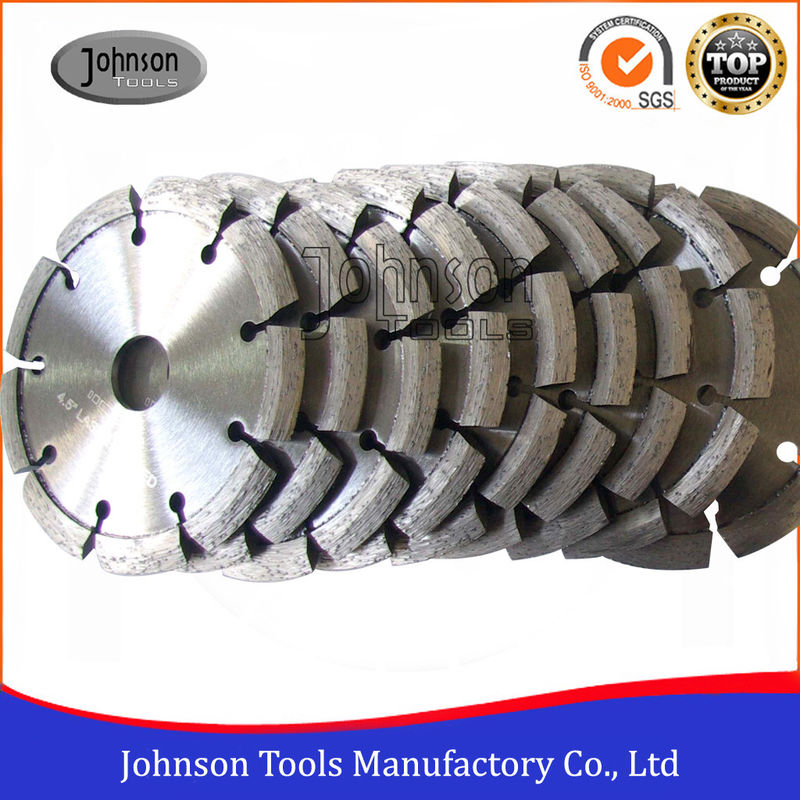

1. Description of 115mm Laser Welded Diamond Tuck Point Blade Cutting Blade
We are China Professional Manufacture of Laser Welded Tuck Point Diamond Saw Blade.

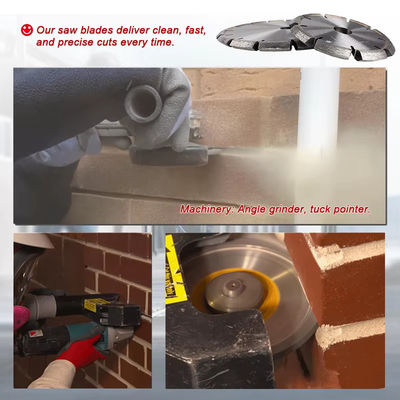

Application: Specialized in Concrete,Brick, Block,Masonry,Stone, very abrasive material. The wheel is high efficiently to widen the slot and existing crack with super durable life.
Laser and silver welded, clear and remove mastics or caulking in the grooves of concrete and stone.
The premium grade TUCK Point BLADE has a higher diamond concentration than standard grade for fast cutting and long service life.
2.Features of 115mm Laser Welded Diamond Tuck Point Blade Cutting Blade
1.Fast removal of grout and mortar
2.High diamond concentration
4. Special request can be done based on customers
5. Affordable price.
6. Different quality grade for clients choose
7. Designed for fast removal of grout and mortar between bricks and in concrete blocks
8. Also use for repair and resurfacing of concrete and masonry materials
3.Specification information of 115mm Laser Welded Diamond Tuck Point Blade Cutting Blade
1. Outer diameter: 115mm
2. Segment size: 6.4x10mm
3. Usage: Wet cutting / Dry cutting
4. Hole: 22.23mm
|Segment type||Segment size||Inner Hole|
|OD115mm tuck point blades||6.4x10mm||22.23mm|
Other size we could do:
|Item number||Diameter||Inside hole diameter||Rim thickness||Rim height|
|LTPC-105||4||105||22.23 mm||6.4mm||7/10 mm|
|LTPC-115||4 1/2||115||22.23 mm||6.4mm||7/10 mm|
|LTPC-125||5||125||22.23 mm||6.4mm||7/10 mm|
|LTPC-150||6||150||22.23 mm||6.4mm||7/10 mm|
|LTPC-180||7||180||22.23 mm||6.4mm||7/10 mm|
|LTPC-200||8||200||22.23 mm||6.4mm||7/10 mm|
|LTPC-230||9||230||22.23 mm||6.4mm||7/10 mm|
4. Packaging and Shipping
Each 115mm tuck point blade is around 0.6kg per pieces, usually 10pcs per carton.
Shipping date: If we have steel body in our stock, normally shipment will be around 7 days. If not, usually around 20-25days
Delivery way: By sea, by air, by courier, by track, etc.
